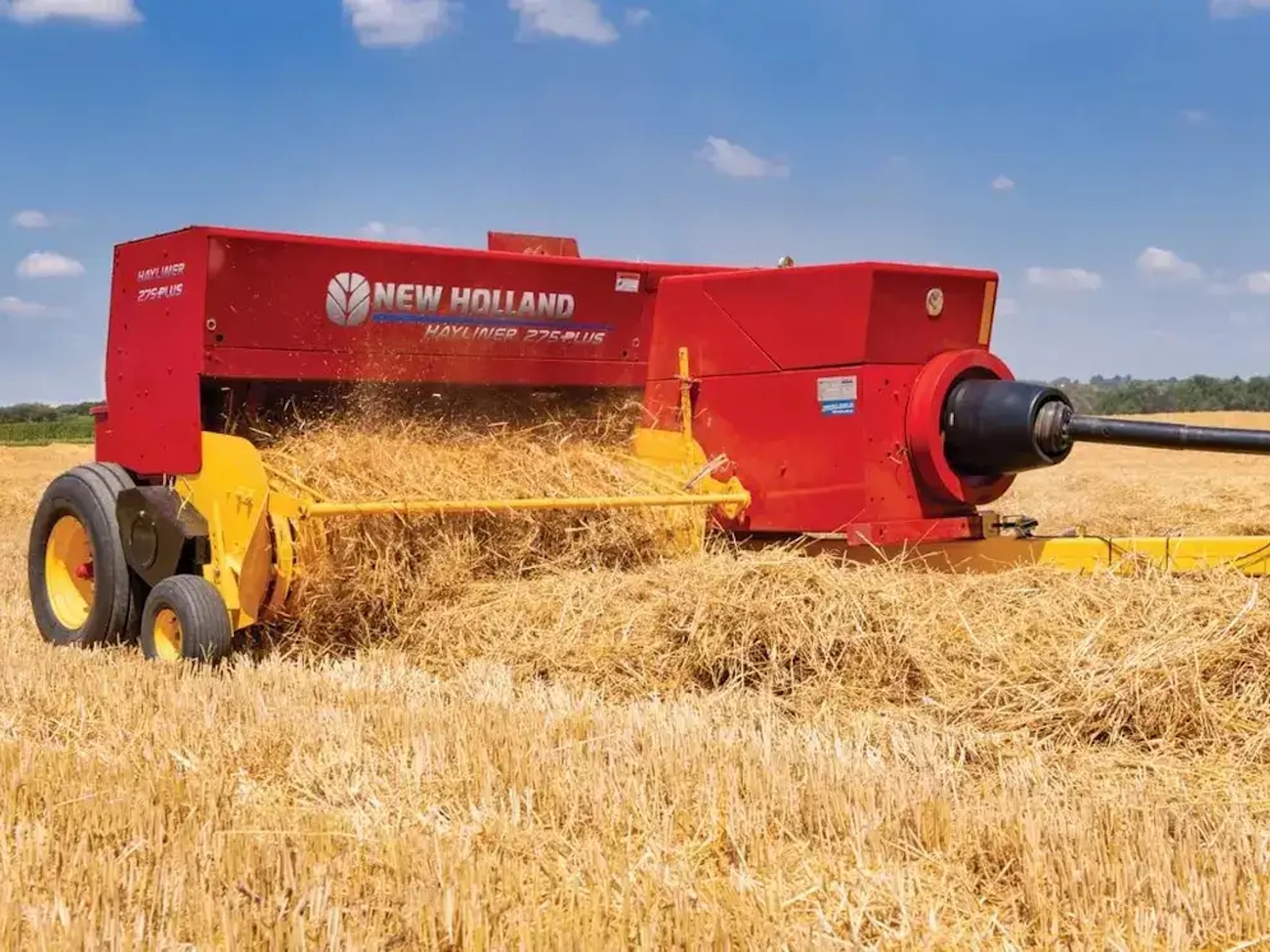

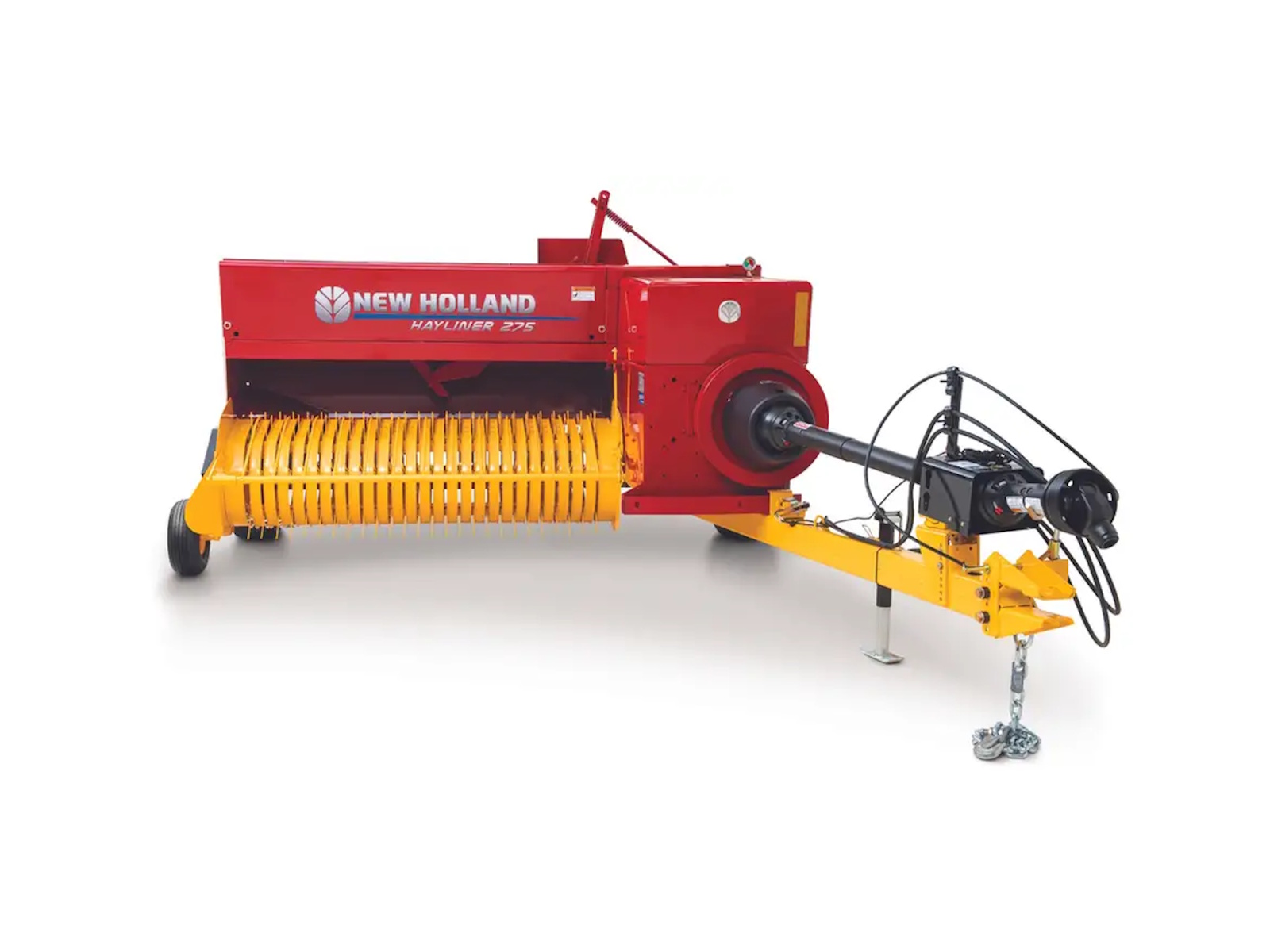

2027 New Holland Hayliner 275

CLASSIC CAPACITY FROM THE ORIGINAL INNOVATION.
Hayliner® Small Square Balers

A LEGACY OF INNOVATION
The Hayliner® name proudly returns across all models—fusing this legendary name, time-tested performance, and reliability with modern styling. No other brand comes close New Holland for the number of small square balers sold.

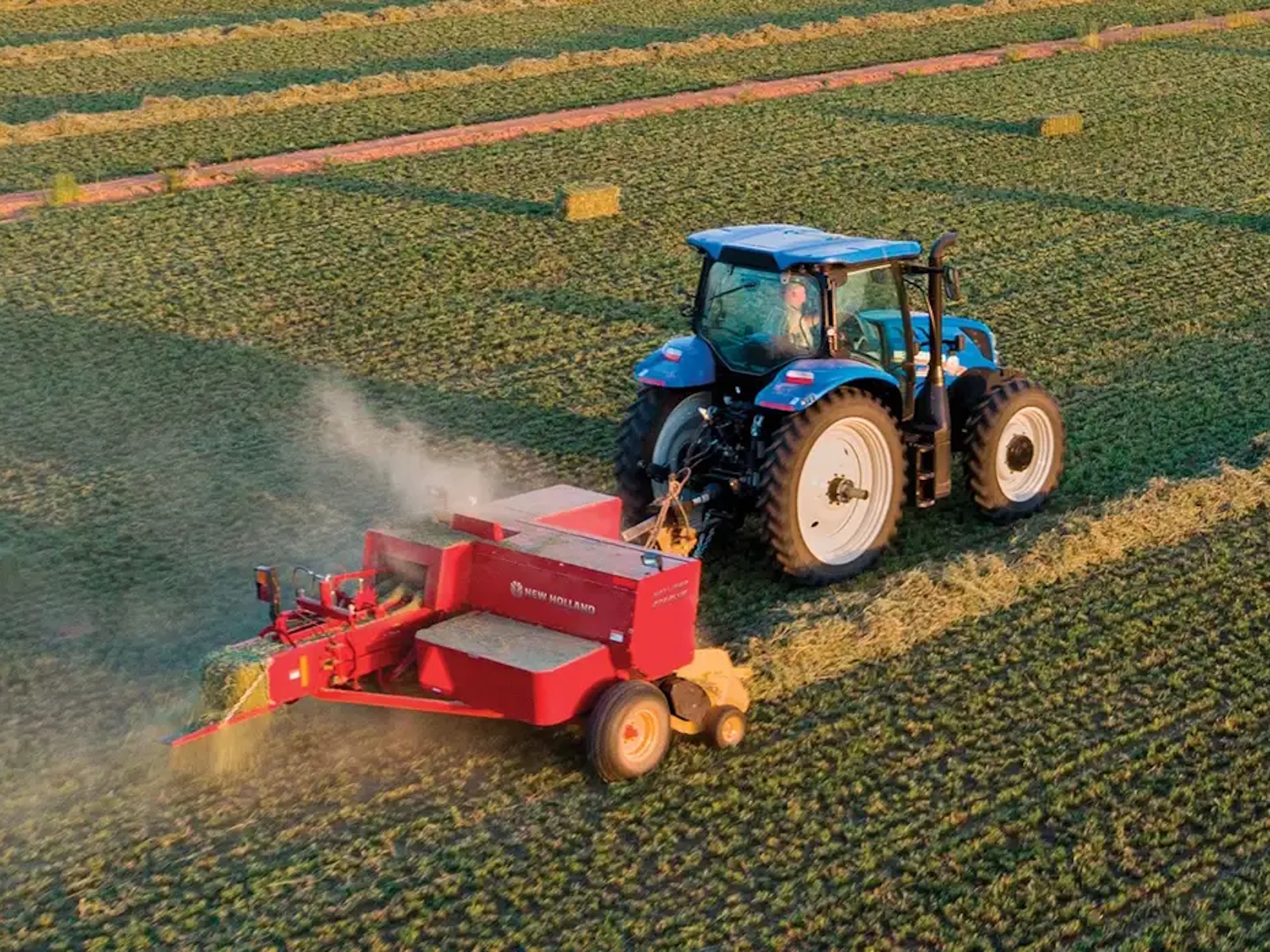

SIDE-FILL DESIGN
The baler swings out to the right of your tractor, making it easier to see than an inline baler design. This time-tested design also means windrows won’t bunch up as they pass underneath a low tractor drawbar or hitch pin.

DEPENDABLE DRIVELINE
The Hayliner® Series offers reliable power transfer for robust performance from the Power-Pivot joint that minimizes driveline wear and chatter to the Category 6 driveline, 248 lbs. (112 kg) direct-drive flywheel, and high-capacity hypoid gear drive gearbox.

BIG CAPACITY FOR SMALL BALES
The durable rotary feeding system provides smooth and even crop flow, while the powerful plunger runs at 93 strokes per minute to handle big windrows at impressive speeds.

THE CLASSIC CAPACITY, FROM THE ORIGINAL INNOVATION
For generations, haymaking operations of all sizes have depended on New Holland small square balers for impressive quality and reliability. Since New Holland introduced the first automatic self-tying baler that revolutionized baling through the balers of today, no other brand comes close to the number of small square balers sold—and that’s for good reason. Today, the Hayliner® name proudly returns across all models—fusing legendary, time-tested performance and reliability with modern styling.

BENEFITS AT YOUR SIDE
The time-tested side-fill design provides you with convenience and confidence. In the field, the baler swings out to the right of your tractor, making it easier to see than an inline baler design. Additionally, this design also means windrows won’t bunch up as they pass underneath a low tractor drawbar or hitch pin.

THE RIGHT MODEL FOR YOUR OPERATION
The Hayliner® 265 is perfect for traditional baling operations with its 65-inch wide five-bar SuperSweep™ pickup, heavy flywheel, and fast, 93 strokes-per-minute plunger speed. Choose between the reliable wire twisting system or the standard-duty twine knotter. For larger baling operations, the Hayliner® 275 has a larger 75-inch-wide six-bar SuperSweep pickup with a pneumatic gauge wheel and a heavy-duty twine knotter with a split frame for easy servicing and reliability. For professional-grade performance, commercial operations should select the Hayliner® 275 PLUS for superior bale density and shape ahead of collection systems. Along with the same features as the Hayliner® 275, it’s also equipped with hydraformatic, four-way bale tension, cast iron hay wedges, hardened plunger rails, a longer, heavier bale case for unsurpassed reliability, and a larger twine box. Rest assured – whichever model you choose, you’ll get proven reliability, impressive capability, and tight bales that are easy to stack and feed.

A BIG APPETITE FOR SMALL BALES
Hayliner® small square balers feature a rotary feeding system that’s durable, reliable, easy to service, and simple to adjust. This system provides smooth, even flow of crop through the baler to reduce leaf loss and produce uniform, high quality bales. Crop moves into the bale chamber with heavy-duty, paired, rotating tines and a feeder fork. The system is timed to keep material flowing evenly into the bale chamber by allowing the tines to overlap for smooth, continuous crop movement. For maximum capacity, a fast plunger speed of 93 strokes per minute with a 30-inch stroke means you have the capacity to handle big windrows at impressive speeds.

HAYMAKING’S HEARTBEAT
New Holland’s reputation for innovation and quality began with the small square baler—a machine that revolutionized the way farmers harvested hay and straw and transformed the company. From the first successful automatic self-tying Model 73 through the Hayliner Series of today, no other brand comes close to the number of small square balers sold—and that’s for good reason. For over 80 years, the steady, mechanized churn of a New Holland small square baler working in the fields has been New Holland’s lifeblood and fueled the heartbeat of haymaking heard around the world.

GEARED UP TO GATHER CROP
Building perfect small square bales starts with reliable power transfer and a pickup that delivers a clean sweep. That’s exactly what the Hayliner® Series offers—a dependable, robust driveline fused with a wide, rugged pickup design that collects even the fine crop that others can leave behind.

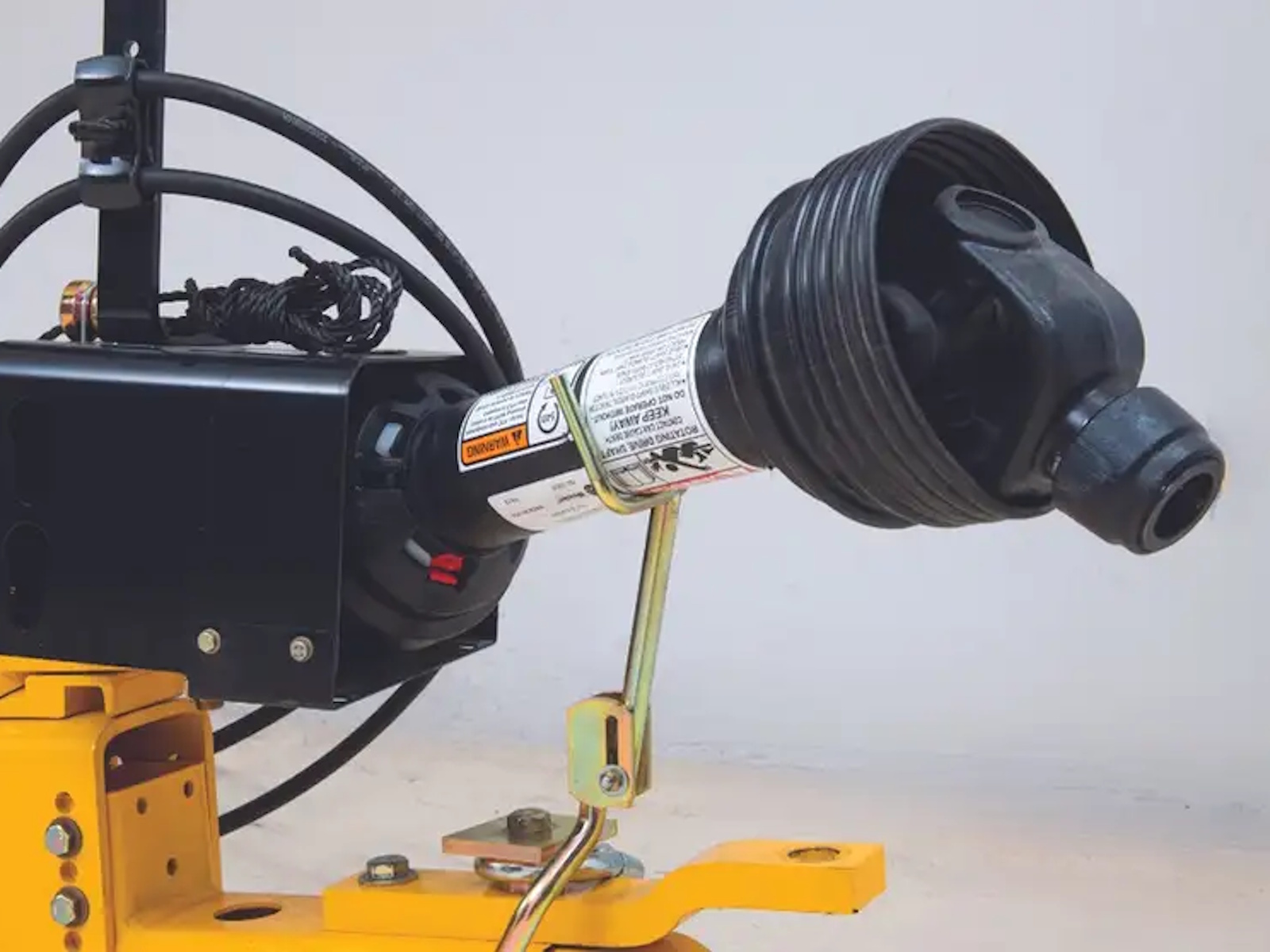

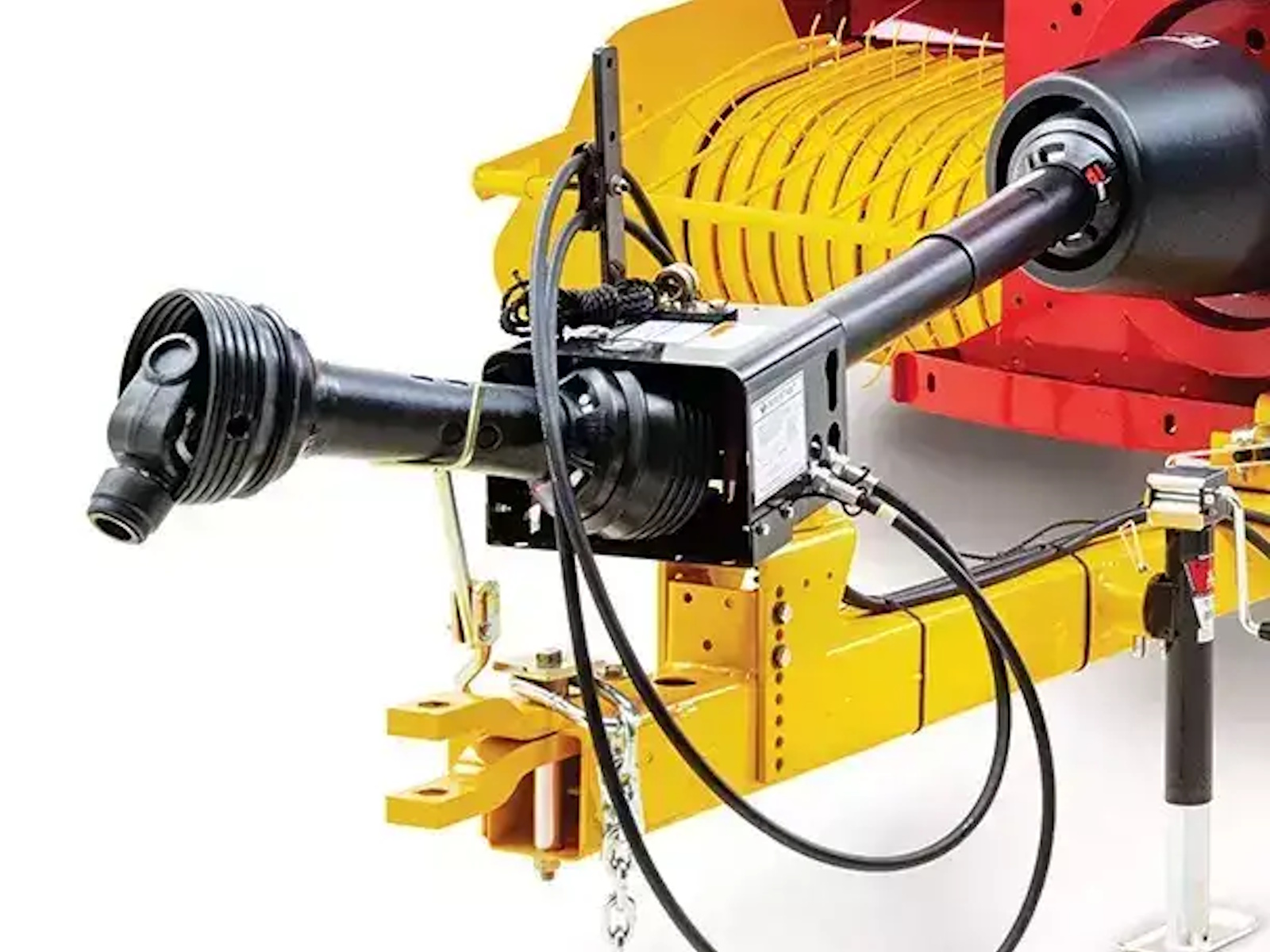

POWER-PIVOT PTO
To relieve driveline stress during sharp turns, the exclusive Power-Pivot joint minimizes driveline wear on universal joints and reduces noise. When turning beyond approximately 75 degrees, the Power-Pivot begins to breakaway—maintaining primary PTO driveline equal angles and reducing driveline chatter—without your intervention. When the turn is complete, the system is spring-reset to the normal working position.

CATEGORY 6 DRIVELINE
Unlike other balers with lighter-duty drivelines, for maximum capacity, you can push more power into a Hayliner® in big windrows with the standard heavy-duty, three-joint, Category 6 driveline.

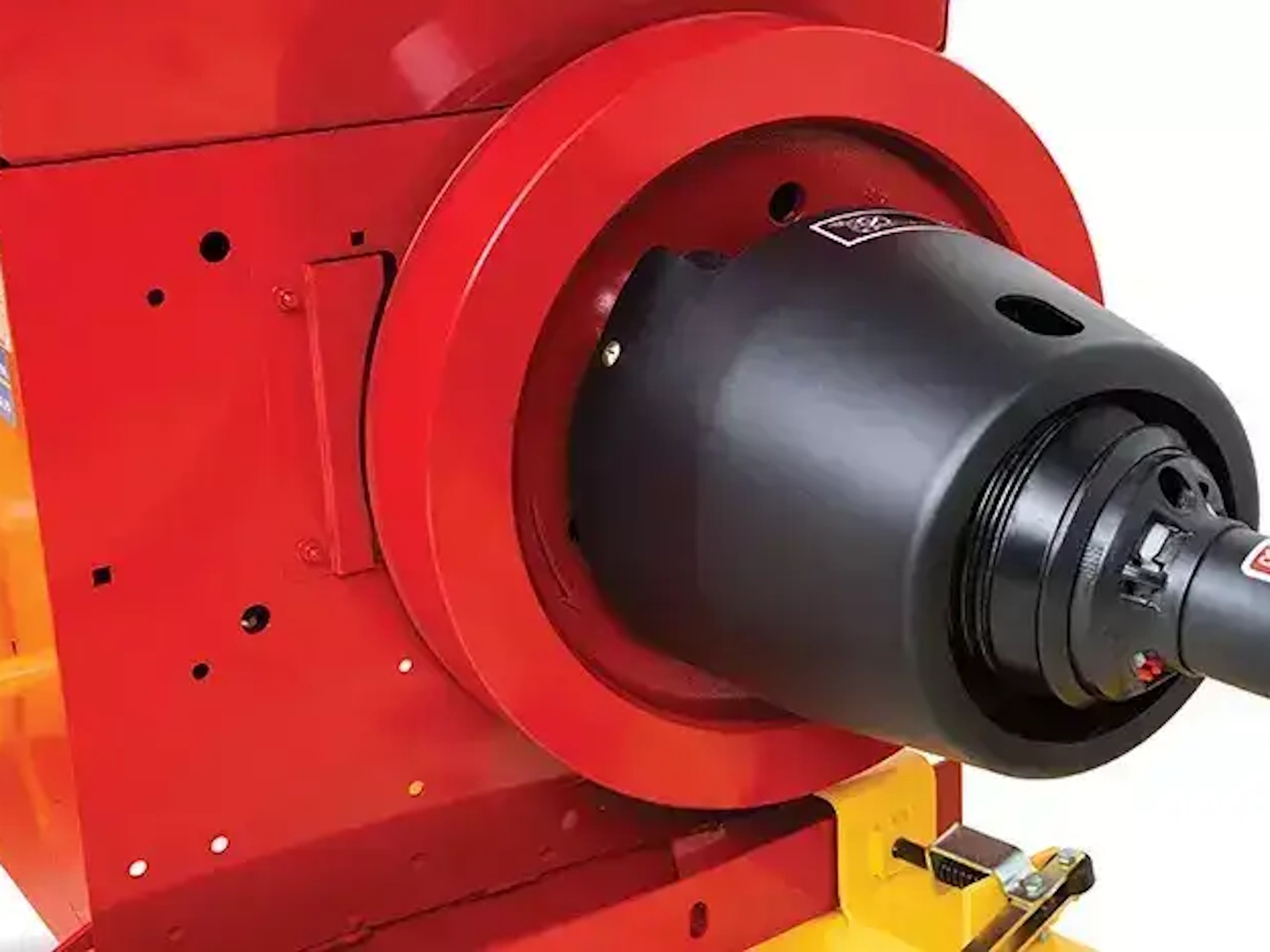

HIGH-ENERGY FLYWHEEL
For smooth power transfer, a 248-pound flywheel dampens each plunger stroke. This direct-drive flywheel is driven with a multiplate slip clutch for gentle engagement, long life, and greater load capacity. To protect your tractor at shutdown, an overrunning clutch eliminates the risk of baling without the flywheel turning, which can occur on indirectly driven designs. Instead, the shear pin on the flywheel immediately cuts power to protect your tractor’s PTO.

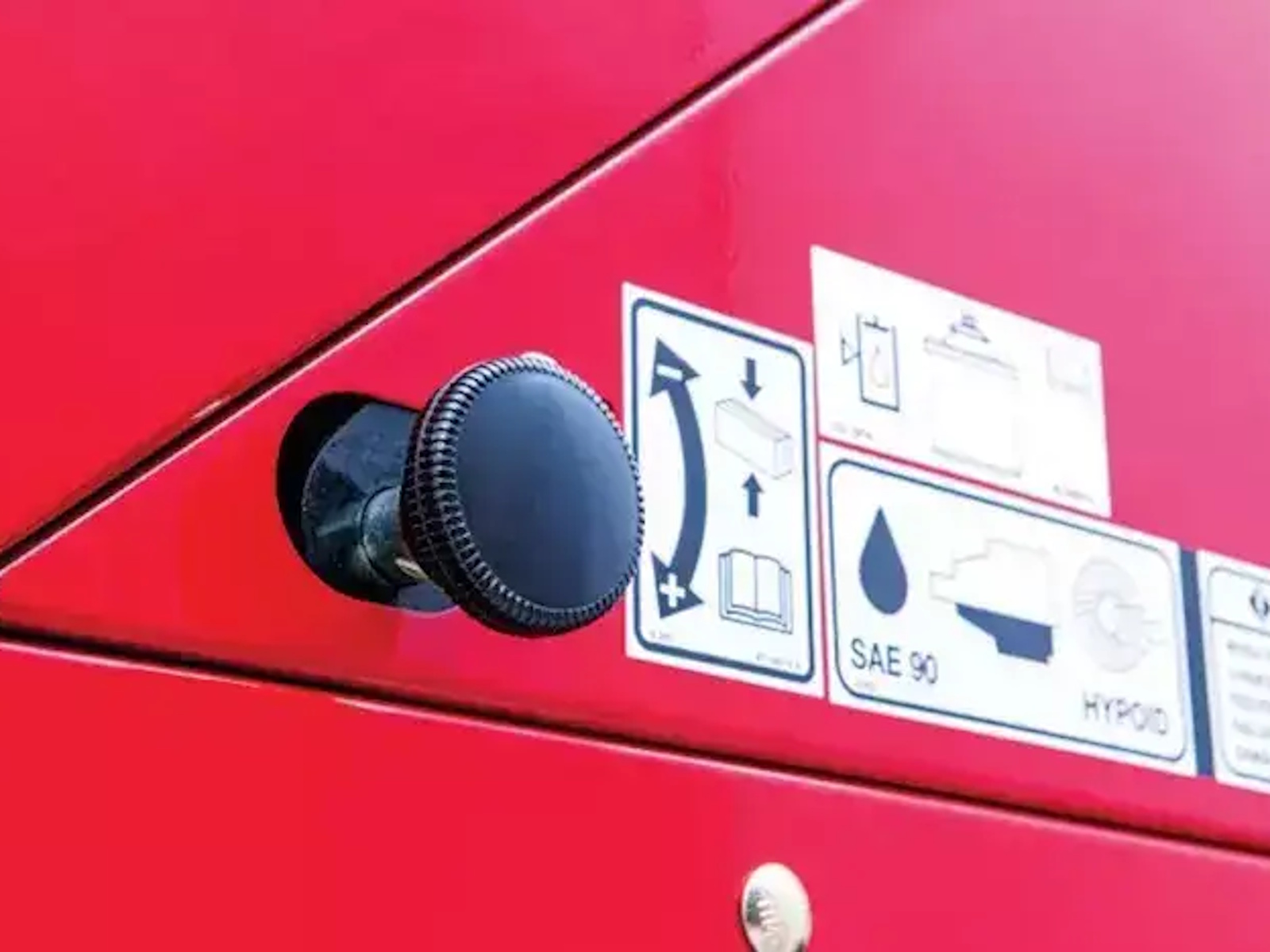

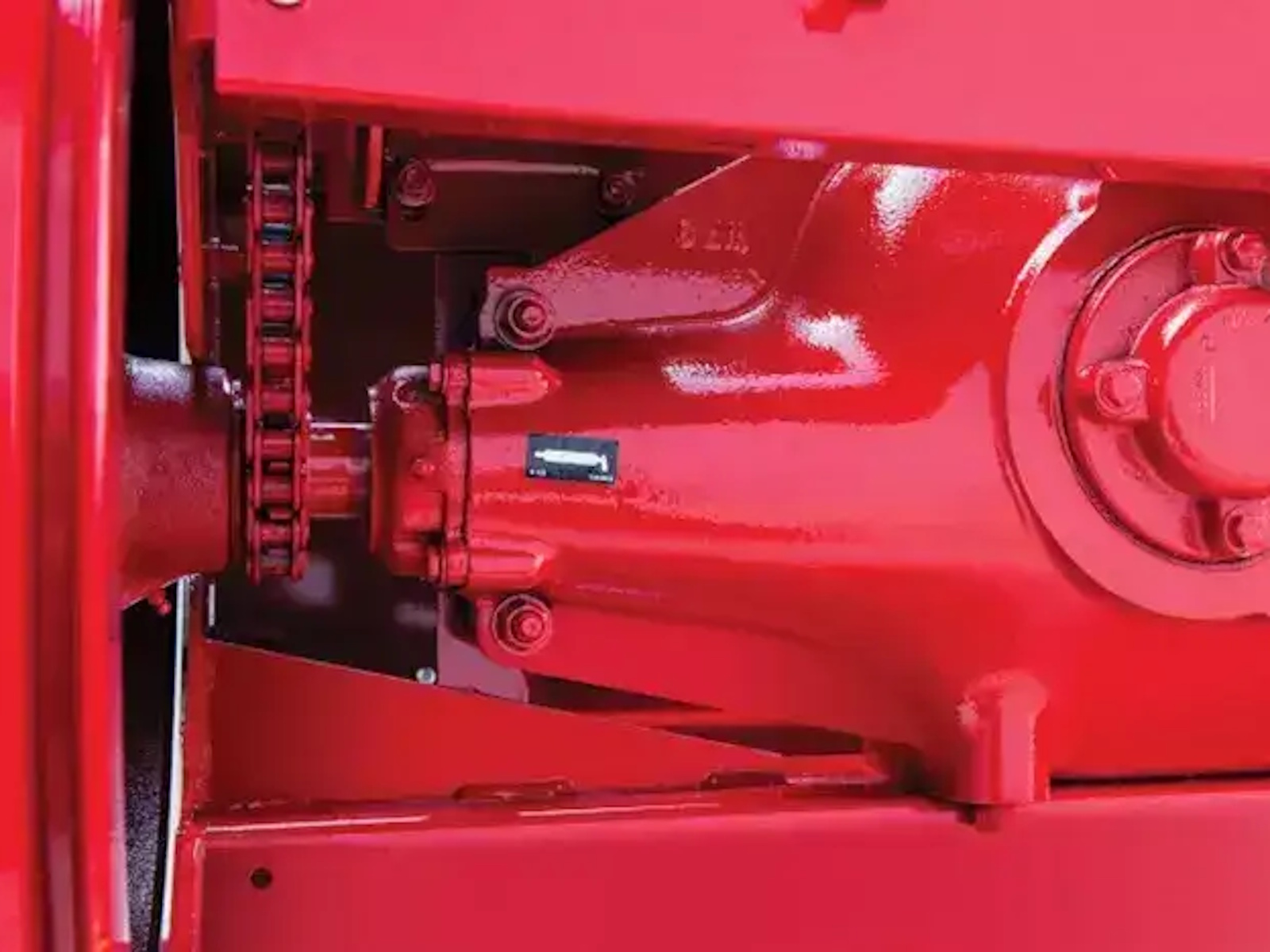

MAIN GEARBOX AND PLUNGER DRIVE
The main gearbox delivers high-capacity and smooth, quiet operation. Fitted, tapered roller bearings and heat-treated alloy-steel gears are sealed in an oil bath for smooth, quiet operation. Its hypoid gear drive powers the baler and produces 93 plunger strokes per minute at full speed.

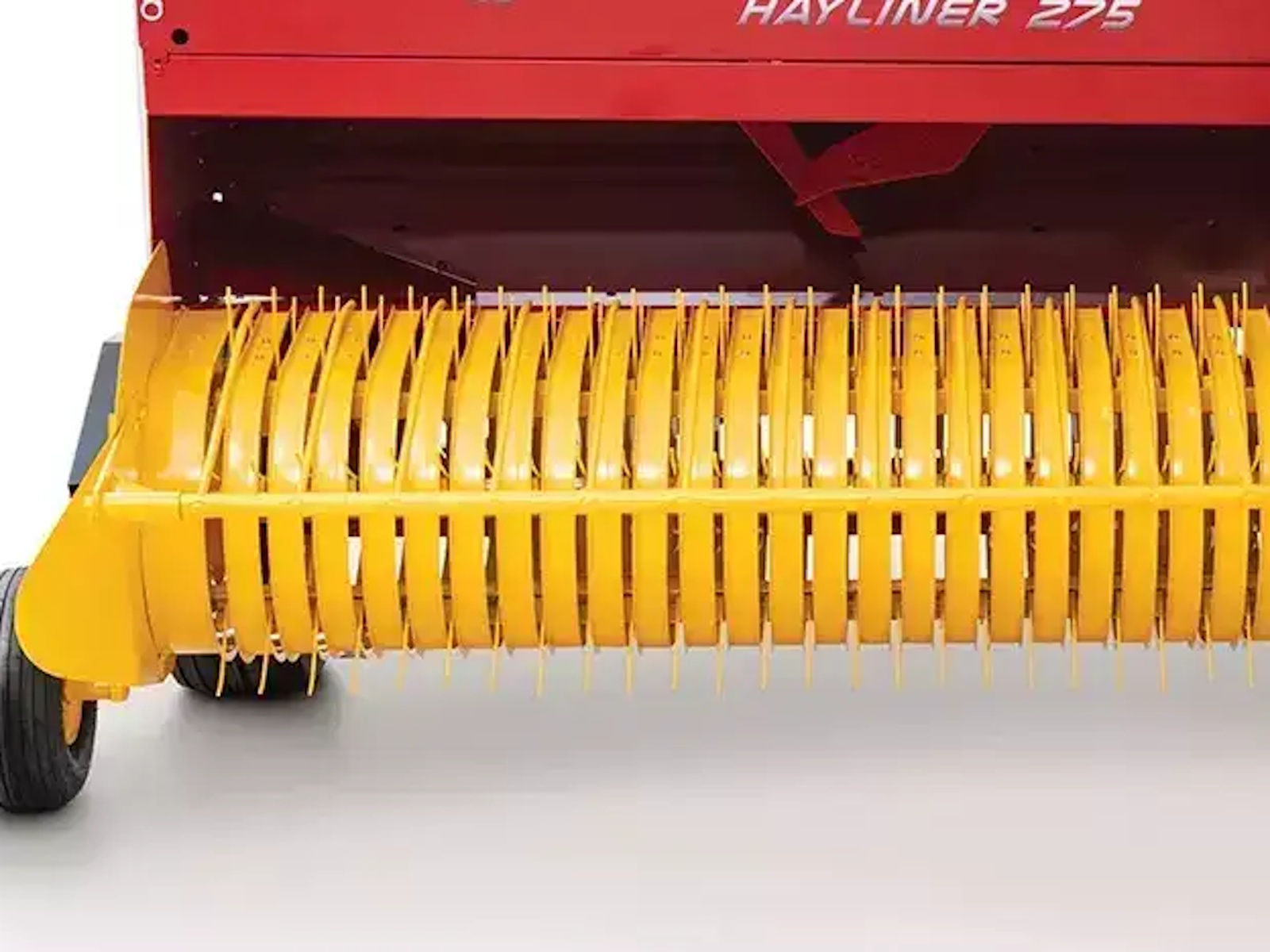

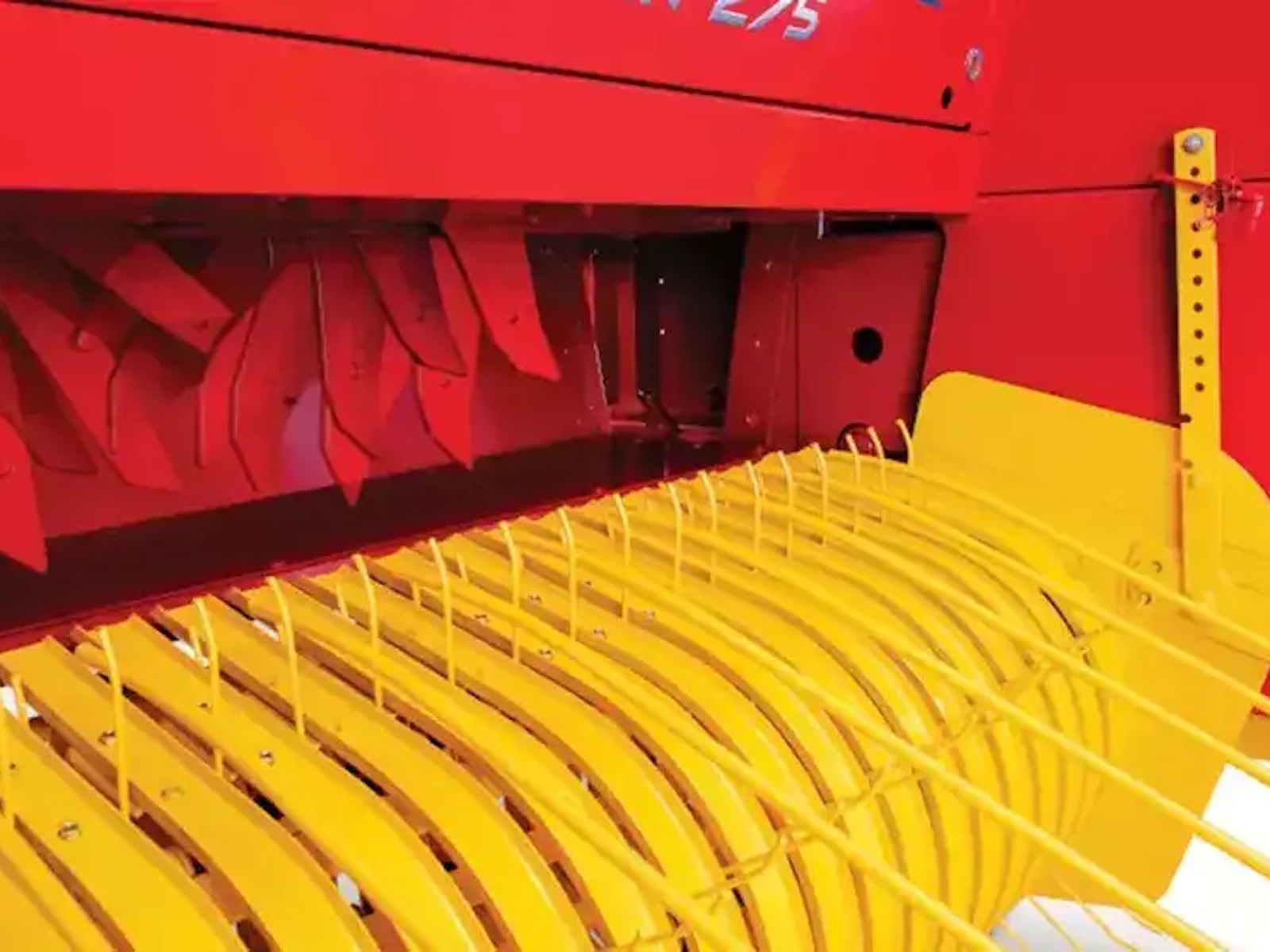

SUPER-WIDE SUPERSWEEP™ PICKUP
Perfect square bales start with the wide, reliable SuperSweep pickup. Curved teeth are made from high-carbon steel alloy with an exceptionally high tensile strength. The 2.6-inch tine spacing means you’ll collect the short, fine crop that other pickups can miss. For trouble-free baling, these pickups are protected against overloads with a belt drive that acts as a slip clutch. Plus, the “lost motion drive” capability means you can back up the baler over windrows without damaging the teeth. Above the tines, a floating windguard helps control the windrow and forms a smooth crop mat for positive feeding.

A LIFT IN PRODUCTIVITY
All pickups are easily raised and latched by hand for transport. However, for effortless raising and lowering to adjust for differing terrain and navigate around obstacles, hydraulic pickup lift is standard on the Hayliner® 275 PLUS and optional on the other models.

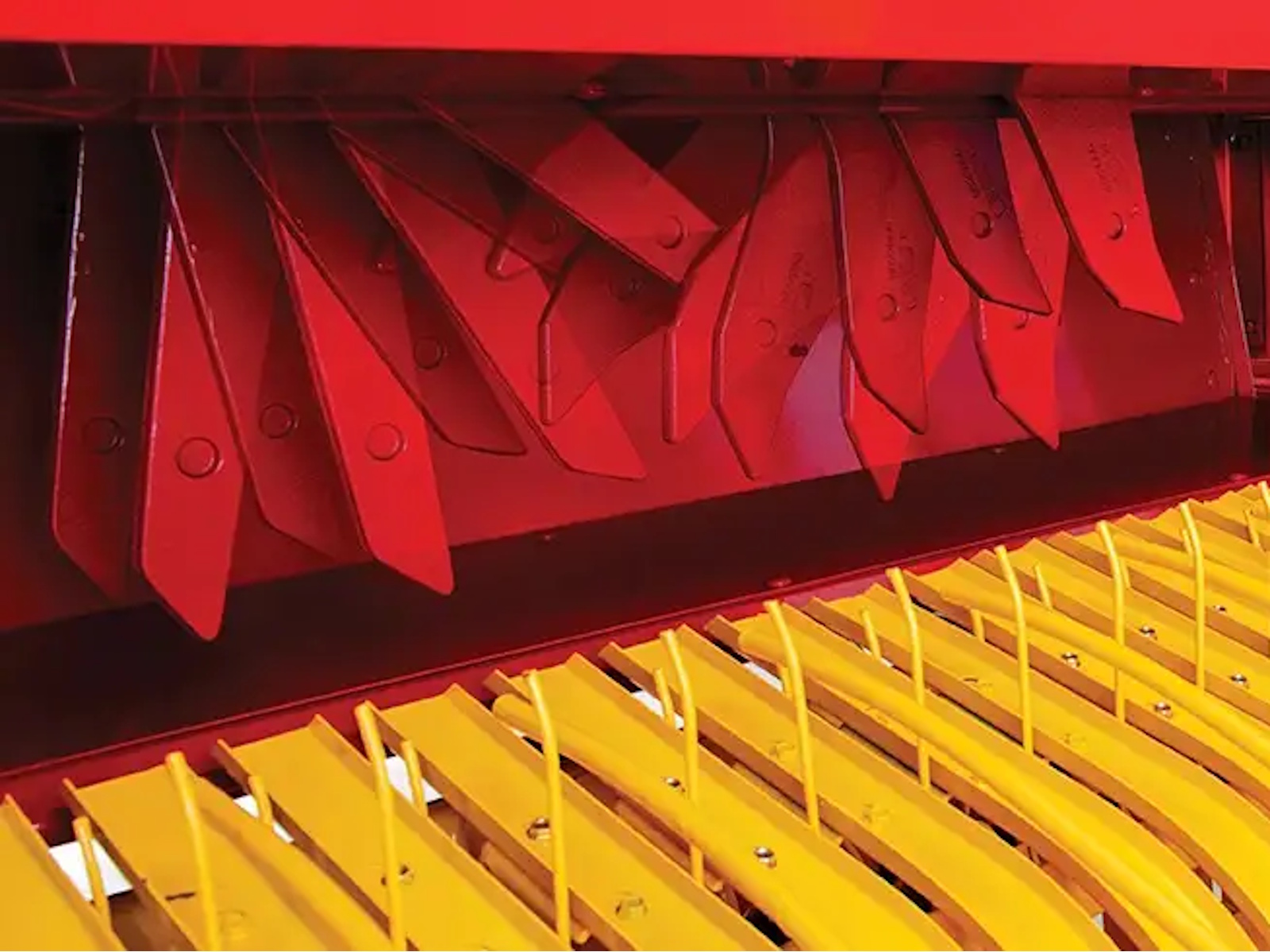

A BIG APPETITE FOR SMALL BALES
The rotary feeding system is durable, reliable, easy to service, and simple to adjust. It provides a smooth, even flow of crop through the baler to reduce leaf loss and produce uniform, high quality bales. Crop moves into the bale chamber with heavy-duty, paired, rotating tines and a feeder fork. The system is timed to keep material flowing evenly into the bale chamber by allowing the tines to overlap for smooth, continuous crop movement. The feeder floor below the tines is replaceable on all models for greater wear resistance, easier serviceability, and to protect your investment.

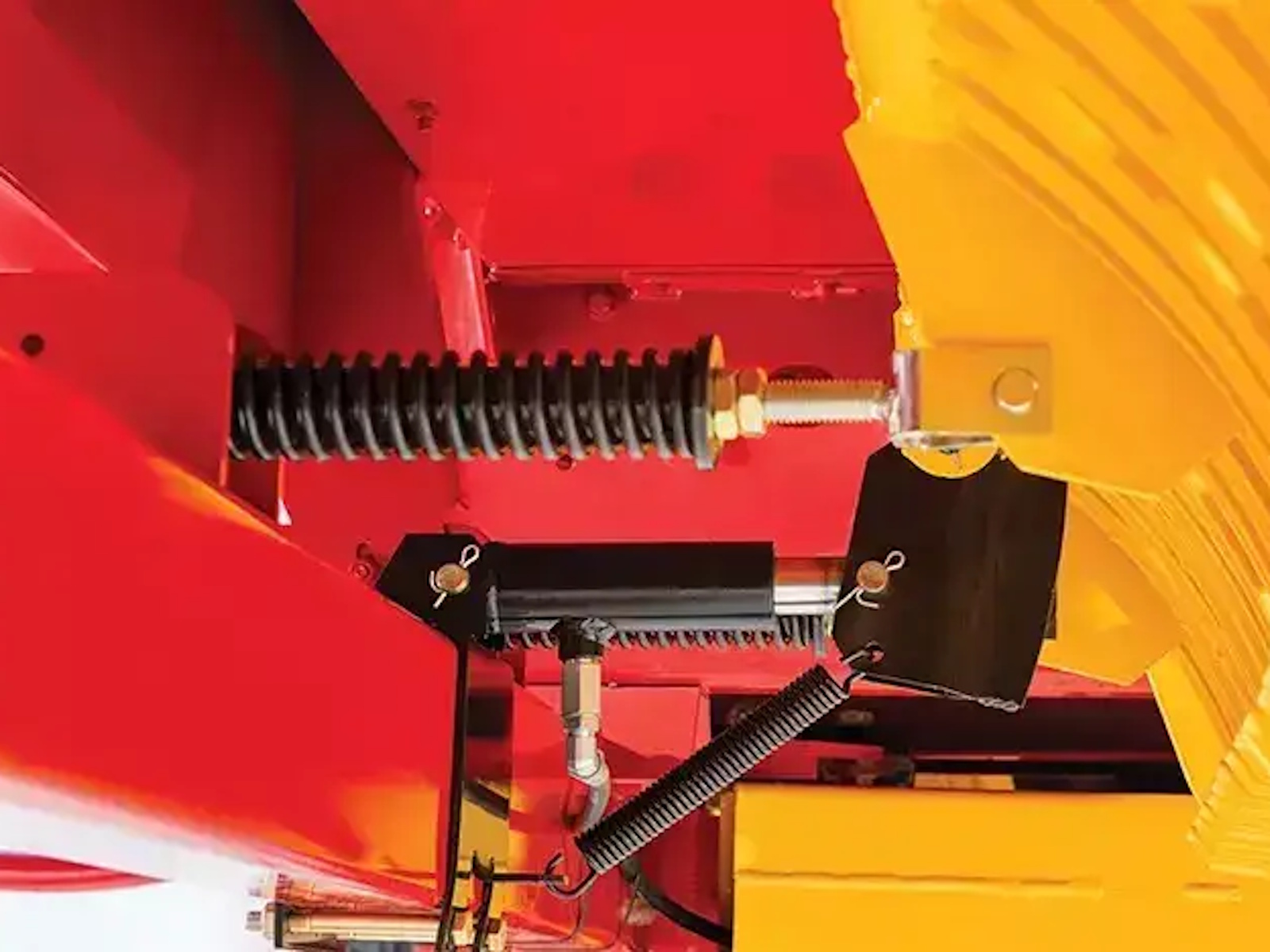

ADJUSTABLE PACKER FORK
A double packer fork folds crop into the bale case through a large, 283-square-inch opening. For optimum bale shape in different crop conditions, this packer fork can be adjusted on both ends in nine different positions.

POWERFUL PLUNGER
For maximum capacity, a fast plunger speed of 93 strokes per minute with a 30-inch stroke lets you handle big windrows at impressive speeds. Even better, with the large feed opening, the plunger can run at lower speeds while still maintaining outstanding capacity. The plunger is guided down a high-strength plunger rail and runs on sealed ball bearings and a white-iron slide block for optimal bale shape, minimal maintenance, and fewer adjustments.

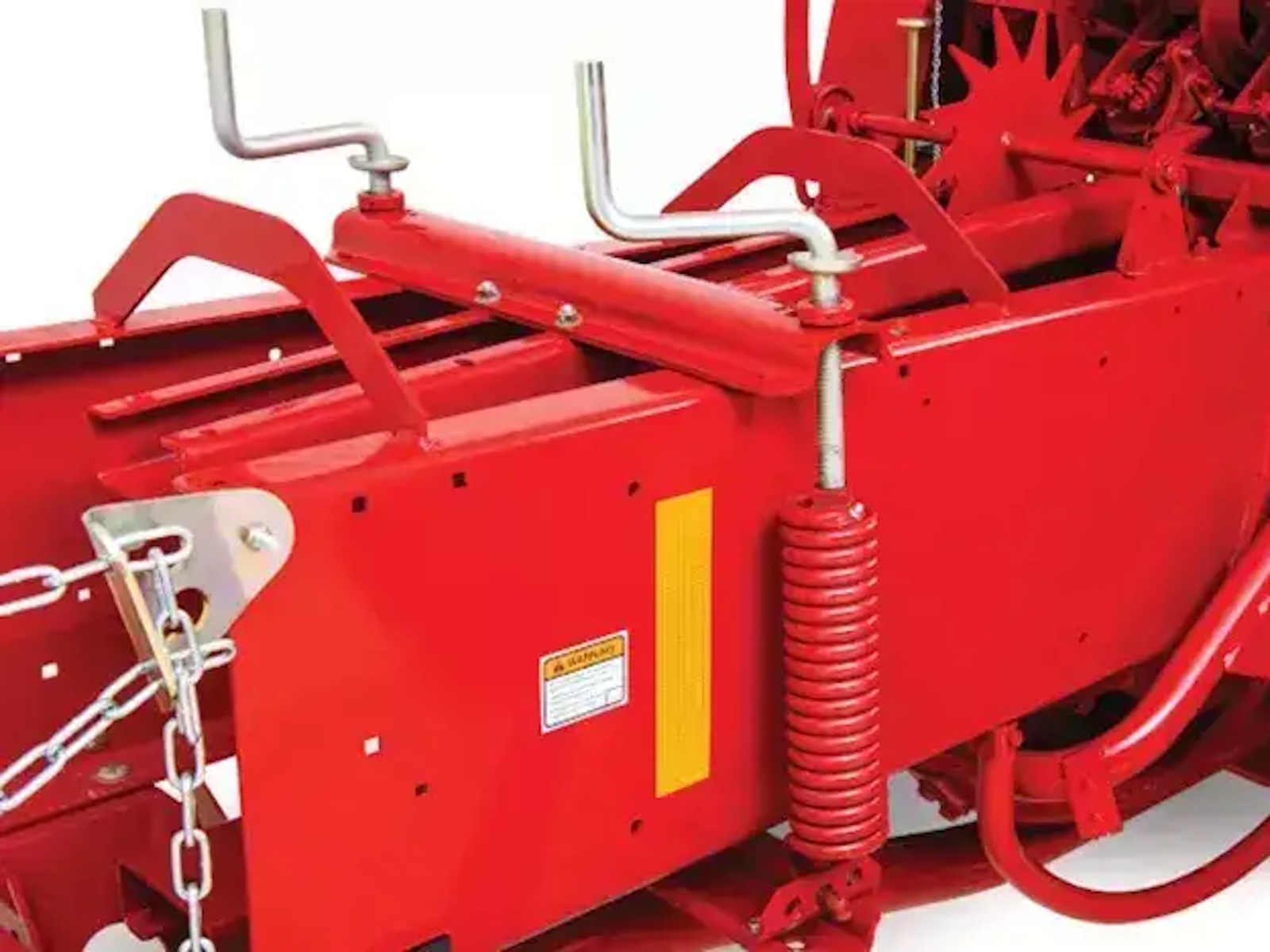

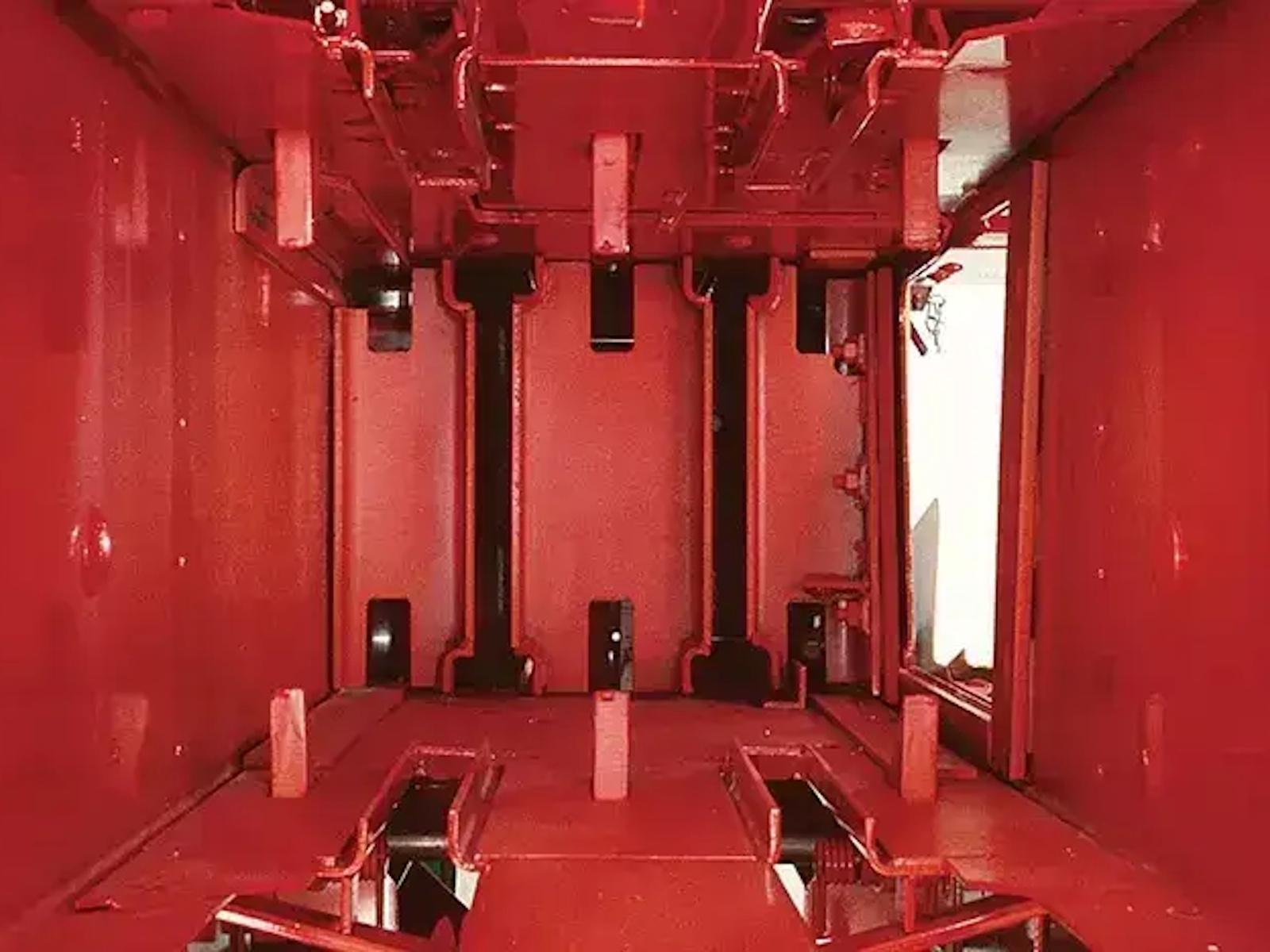

BALE CASE AND CHAMBER – HAYLINER® 265 AND HAYLINER® 275
The rugged bale chamber of the Hayliner® 265 and Hayliner 275 is designed to promote better bale formation. Six hay dogs hold charges in place to allow crop to be evenly distributed as it enters the chamber for compression, which leads to high-quality bales. Adjustable tension springs apply bale tension. Just a half-inch increase in spring tension equates to an increase of 600 pounds of force. Changing bale density is easy with the adjustable tension doors. You can also upgrade either model with two-way hydraformatic bale tension control. The hydraformatic system is self-contained and the flywheel gear-driven pump is positioned for easy adjustment and servicing.

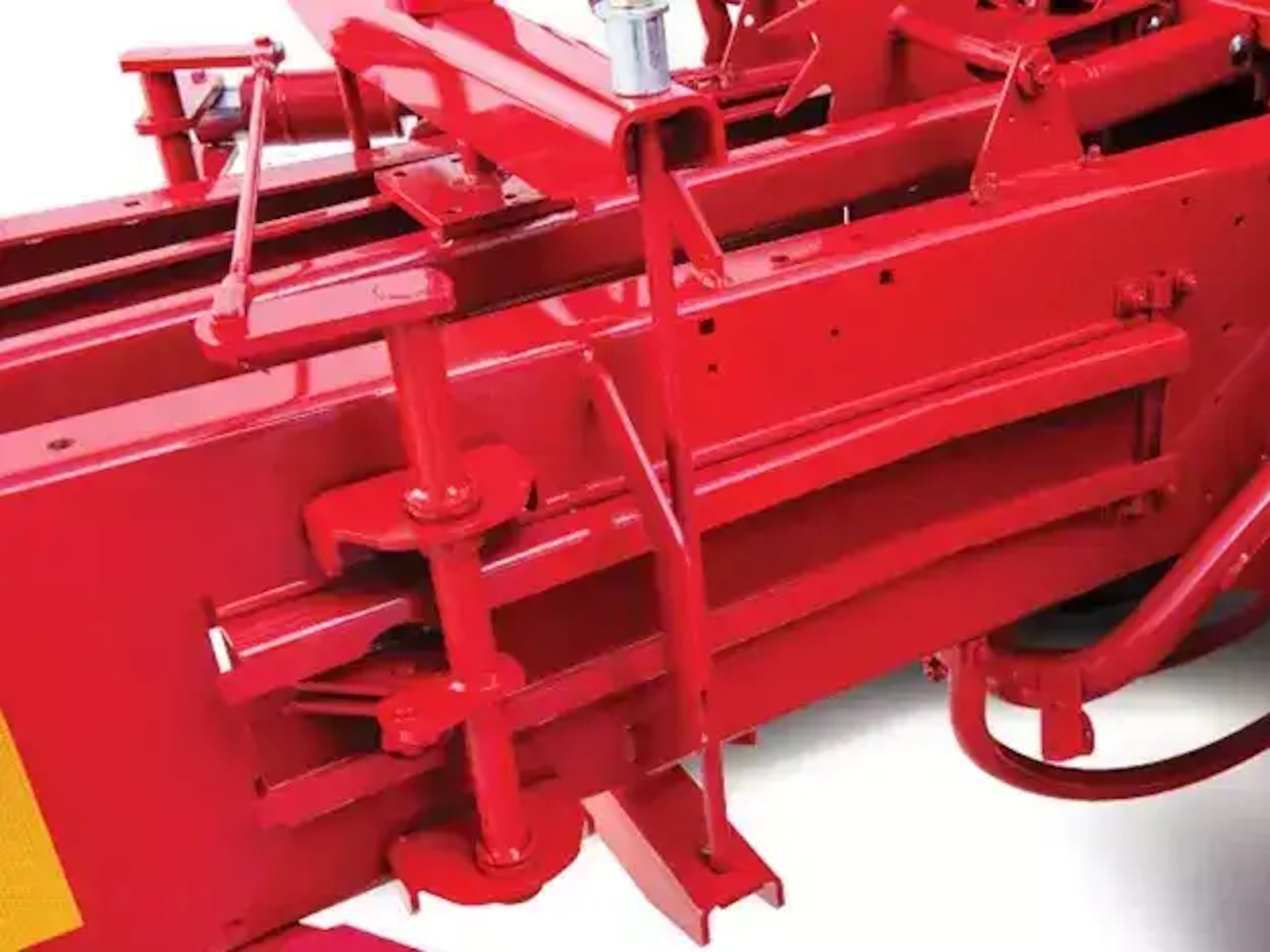

BALE CASE AND CHAMBER – HAYLINER® 275 PLUS
To improve bale shape and length, the Hayliner® 275 PLUS features a bale case that’s extended by 12 inches to hold the bale longer and provide extra density, which lets you make bales as heavy and dense as possible. Four-way hydraformatic tension is standard and with just the turn of the knob, tension is applied to all four sides of the bale. Hydraulically controlled side tension rails increase density and apply more consistent pressure throughout the entire bale. The Hayliner® 275 PLUS is also outfitted with a hardened, high-strength steel plunger rail, 19% thicker bale chamber, and heavy-duty cast-iron hay wedges that replace the front sheet metal wedges for enhanced performance in straw compared to the Hayliner® 265 and Hayliner® 275.

THOUSANDS OF BALES WITHOUT A MISS-TIE
The proven twine-tying and wire-twisting systems found on the Hayliner® Series can go thousands of bales without a miss. Both systems are gear driven for simple maintenance and adjustments and are made in New Holland, Pennsylvania, alongside the balers.

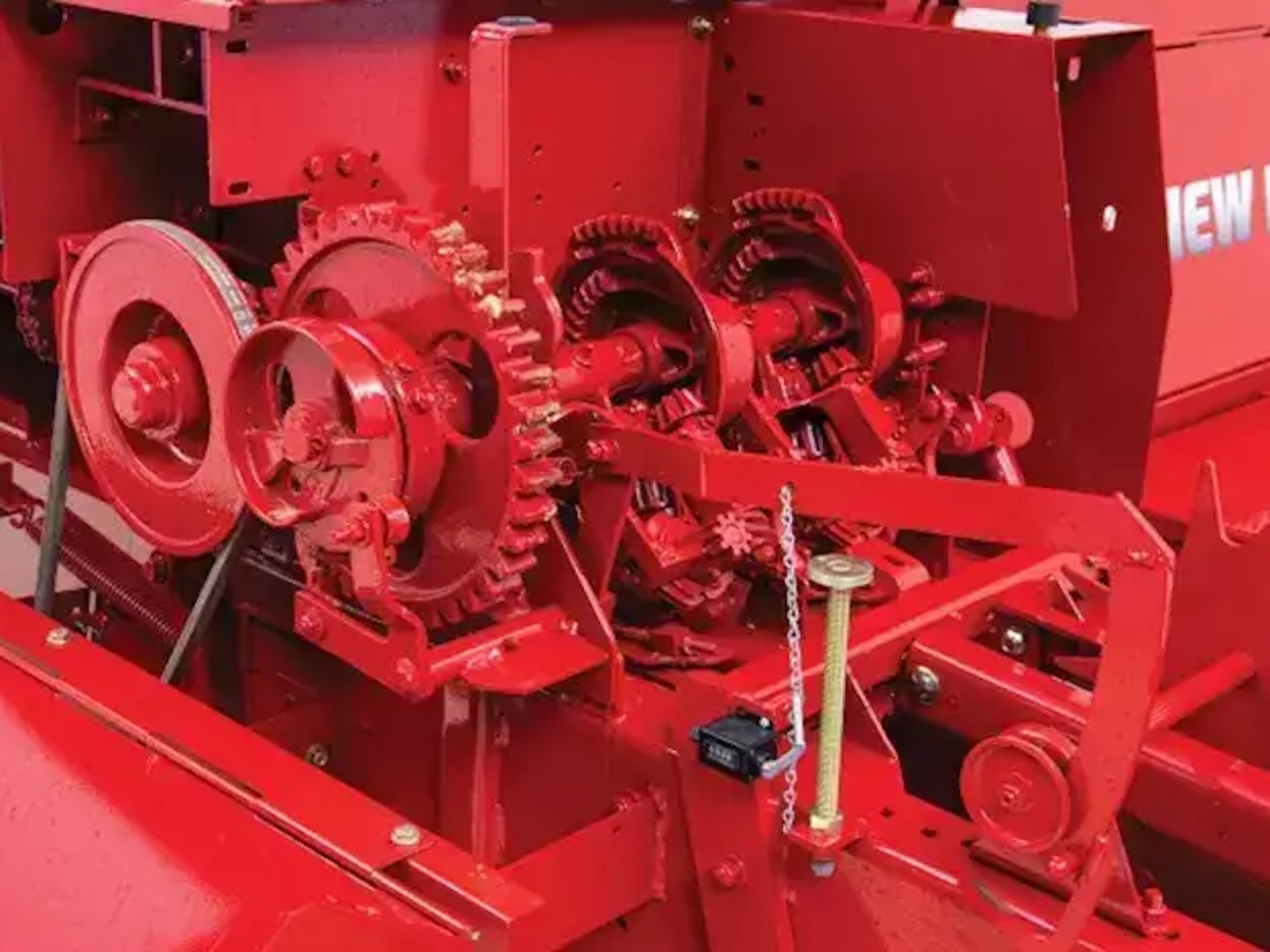

TWINE KNOTTER SYSTEMS
For long life and smooth operation, the knotter systems have hard-surface material at important wear points. The standard knotter is equipped on the Hayliner® 265 to deliver reliable tying, while maintaining an economical price point. The Hayliner® 275 and Hayliner® 275 PLUS are both upgraded with the heavy-duty split-frame knotter for easier servicing, impressive reliability and professional-grade performance.

GEARED FOR BALING BENEFITS
Flip down the steel side door and you’ll find a simple, gear-driven knotter design. Gear drives are easier to keep in time, which means consistent accuracy and impressive reliability for you. This design also makes servicing or replacing the pickup belt simple. For added protection, the knotter stack is protected with a shear bolt in the main drive gear.

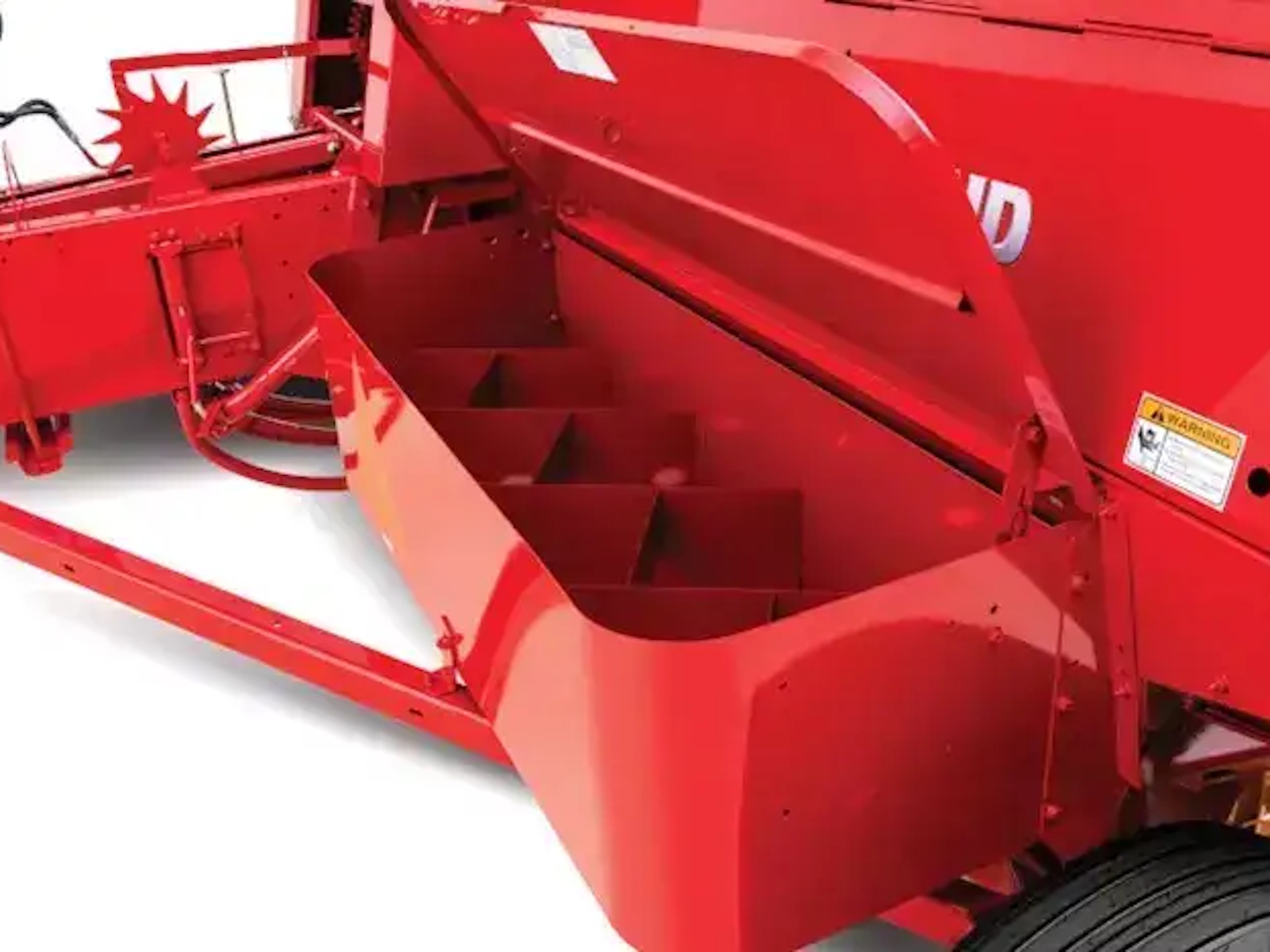

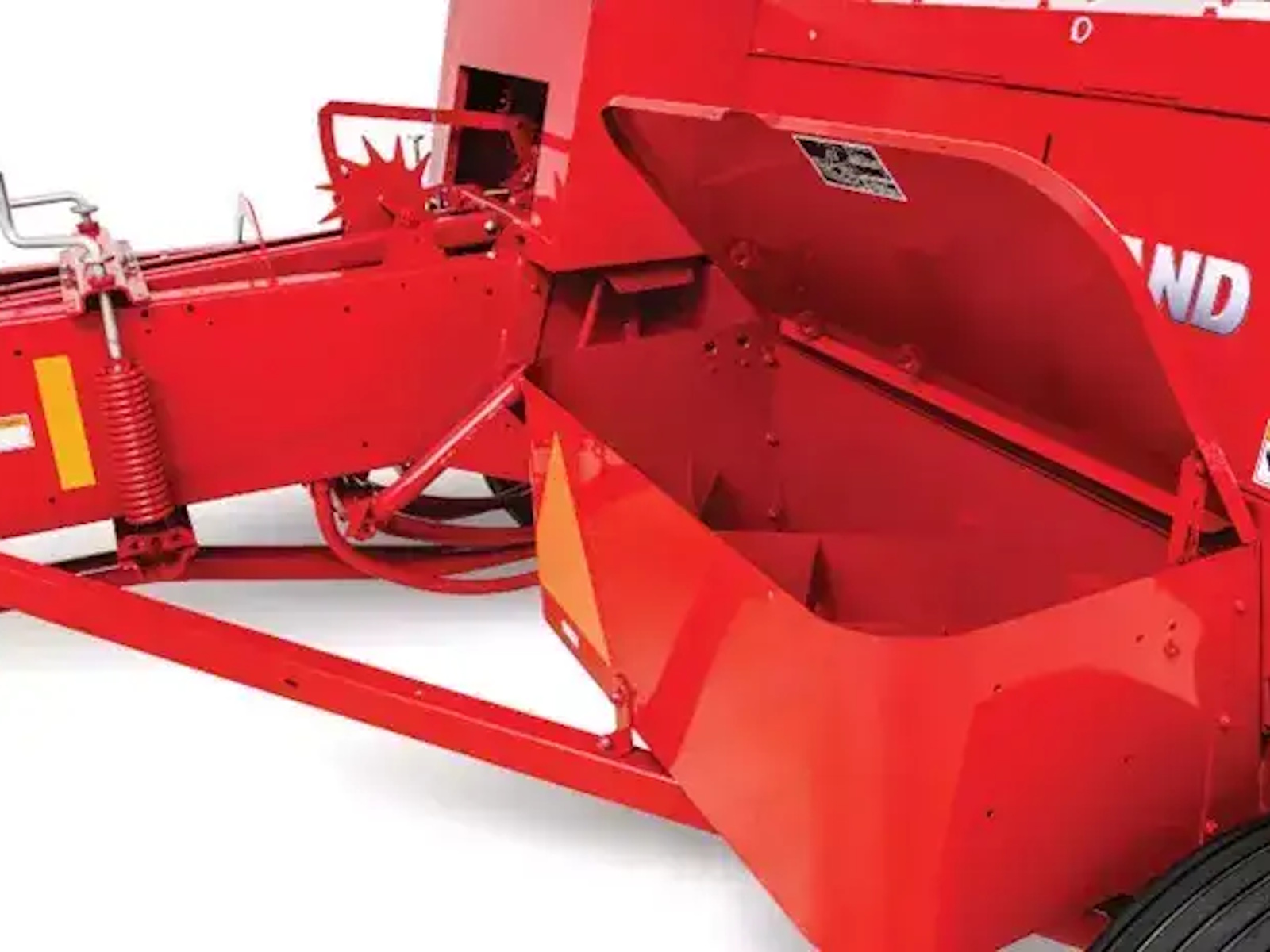

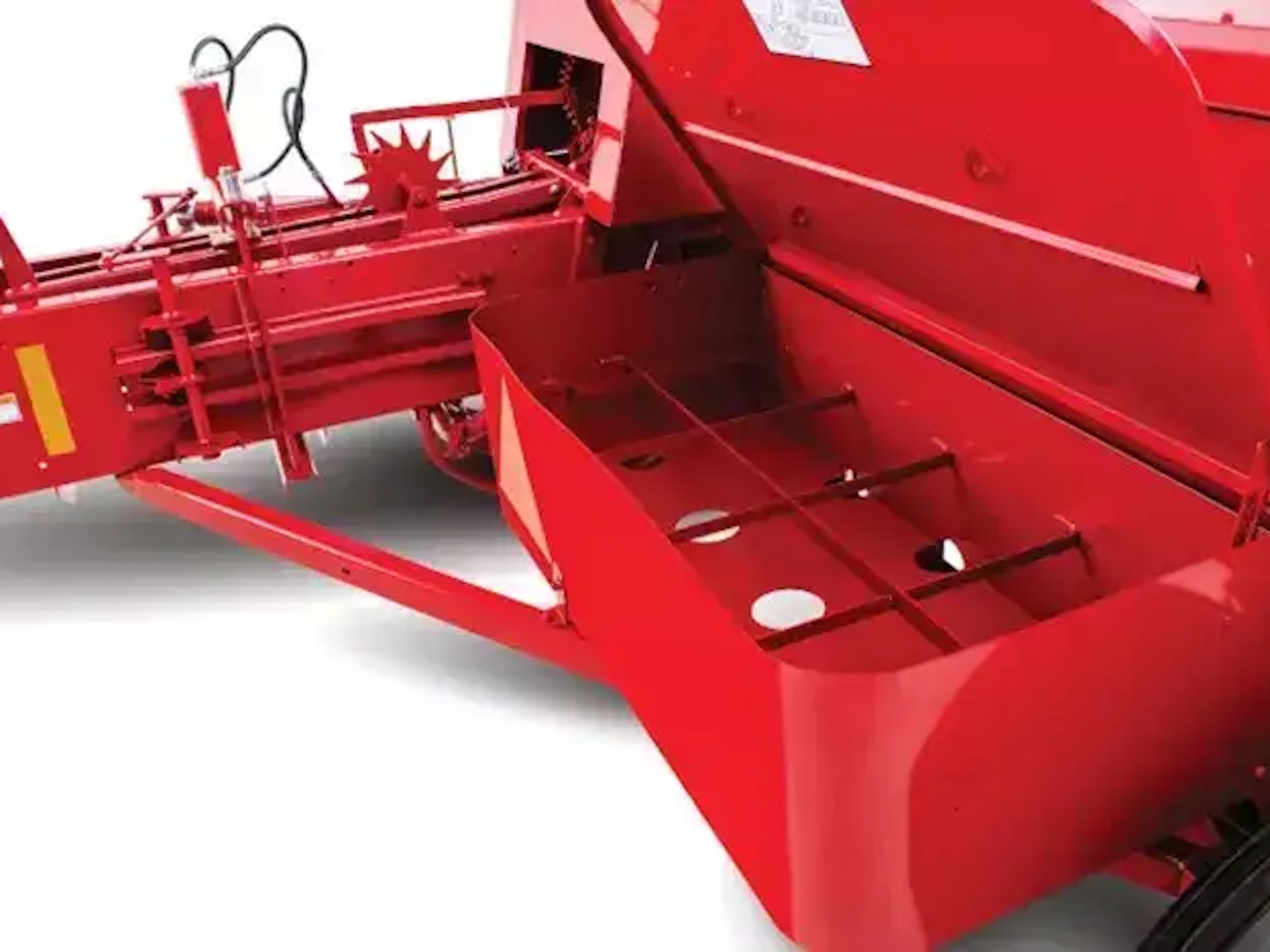

CAPACITY FOR ALL-DAY BALING
Regardless of the tying system you choose, the twine or wire box is conveniently located at the rear of the baler. A hinged steel lid keeps the inside clean and dry. The twine box on a Hayliner® 265 has capacity for six standard twine balls, while the Hayliner® 275 and Hayliner® 275 PLUS have boxes with capacity for eight twine balls to keep you baling longer. The Hayliner® 275 PLUS can even incorporate large twine balls.

TIGHT BALES START WITH NEW HOLLAND TWINE
If your aim is to make tight, well-shaped bales, it only makes sense to use a top-quality twine that can keep them that way. All New Holland twine has been tested and specifically proven to work in Hayliner® small square balers. This natural twine is treated to resist mildew, rot, rodents, and insects, and is uniform in thickness and strength throughout the entire length. That’s why New Holland natural twine has fewer tying problems and a higher knot strength than the competition. New Holland plastic twine sets the standard for quality, strength, and long-lasting durability. It’s also rot-resistant, non-toxic and harmless if eaten by animals. Plastic twine will work without any modifications in any properly adjusted twine baler.

WIRE TWISTER SYSTEM
If you or your customers desire maximum bale weight, especially in light crop like straw, or bales that have ultimate resistance against rodents for outdoor stacking, consider the proven wire twister system. This simple system is available on the Hayliner® 265 and Hayliner® 275 with capacity for four wire coils of 14.5-gauge annealed wire.

BALE PLACEMENT HOW AND WHERE YOU NEED IT
To match the needs of your haymaking operation, three chute options are available across the Hayliner® Series: the quarter-turn chute, the triple-purpose chute, and the Model 72 Bale Thrower. All options ensure bales are placed how and where you need them.

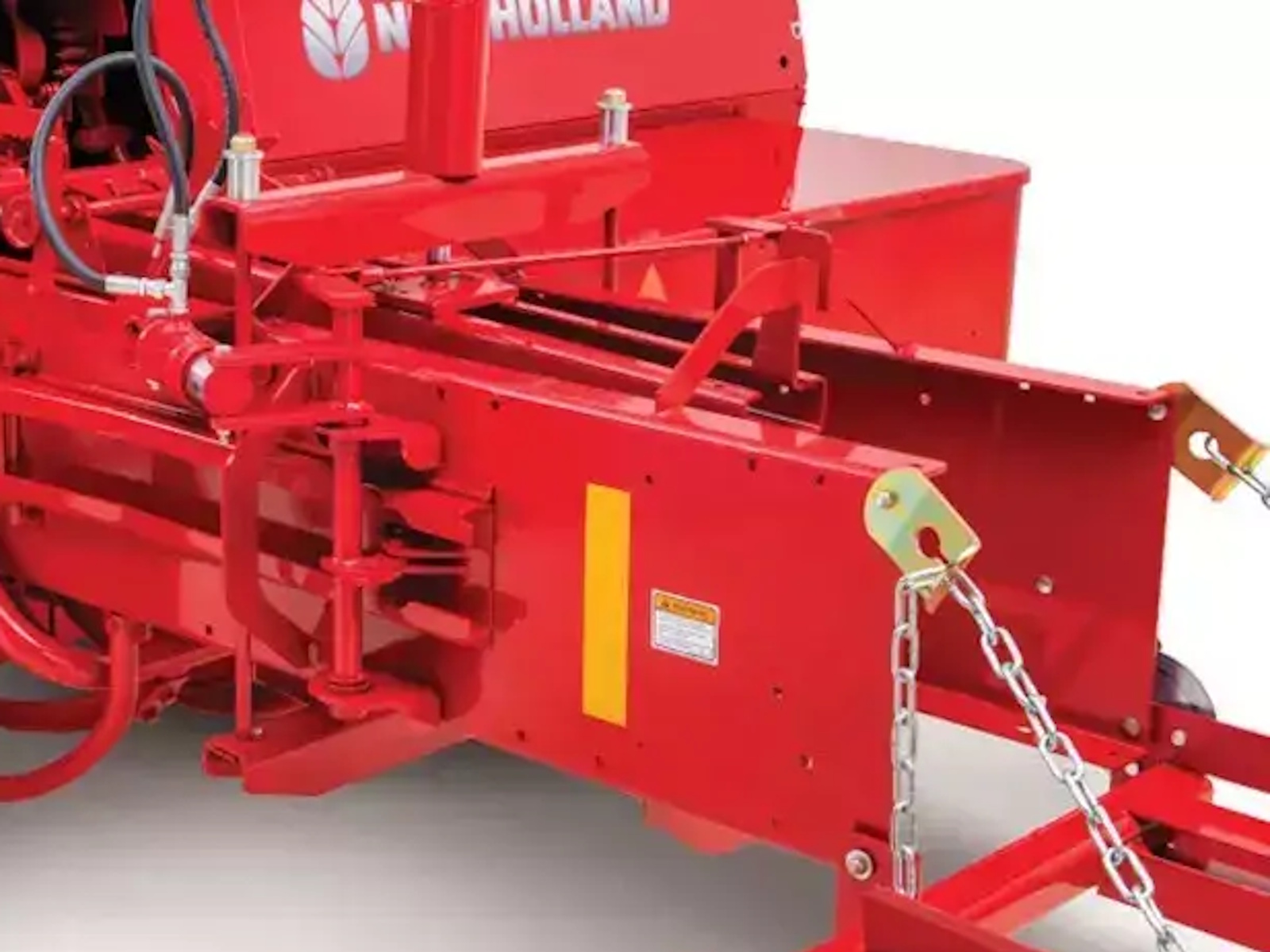

QUARTER-TURN CHUTE
The quarter-turn bale chute drops bales on their sides so that twine is kept away from the ground to prevent rotting. This chute also lets you set bales into proper position for retrieval by automatic bale wagons, like a Stackcruiser®. The bale case extension is recommended when using this chute with the Hayliner® 265 and Hayliner® 275 but is not required with the Hayliner® 275 PLUS, which comes standard with the extended bale case.

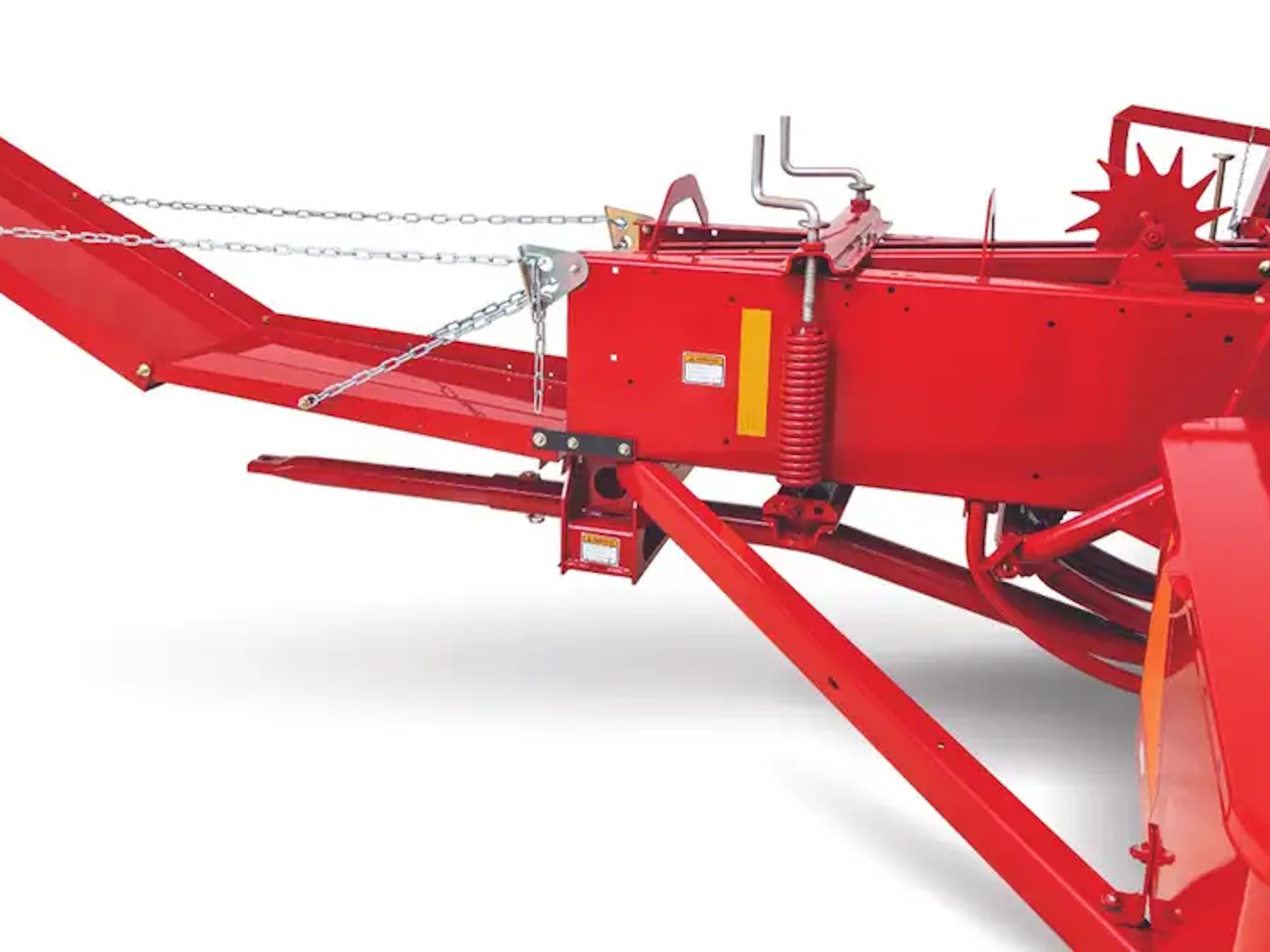

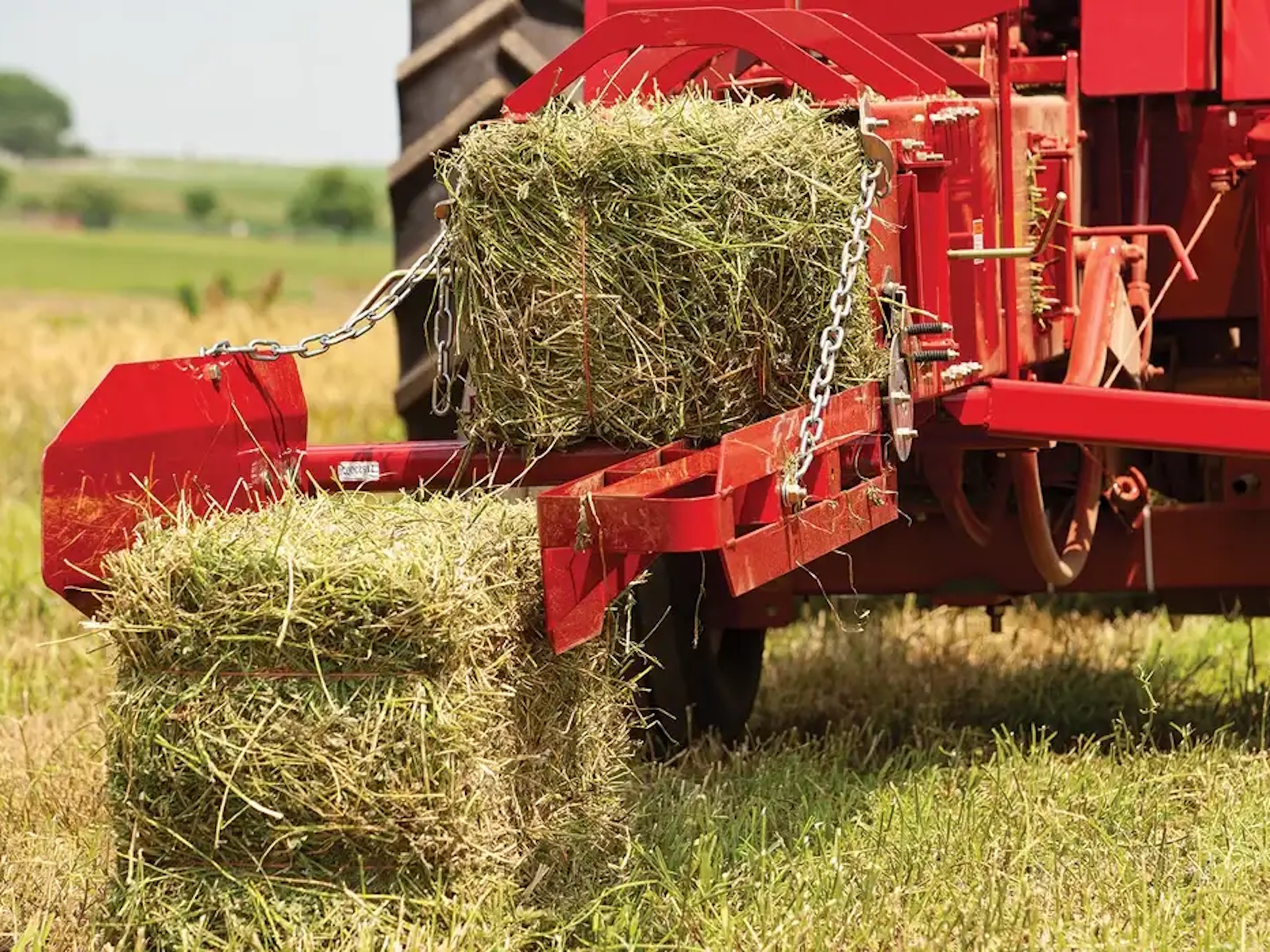

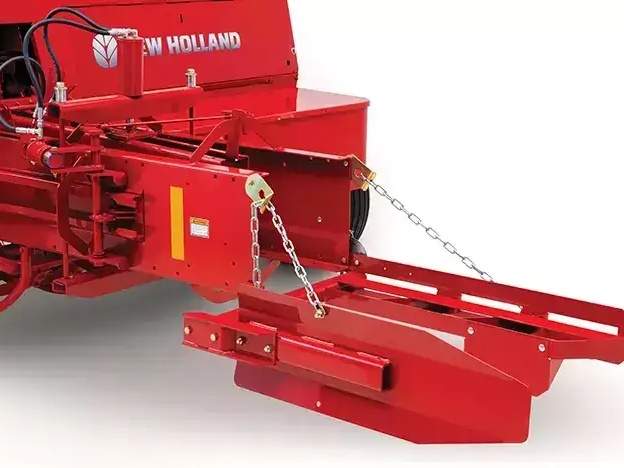

TRIPLE-PURPOSE CHUTE
The triple-purpose chute works with the wagon hitch and on its own to support bales as they leave the chamber, guiding them flat to the ground. For easier baling, this chute can also be adjusted to roll bales to the left, away from the next windrow.

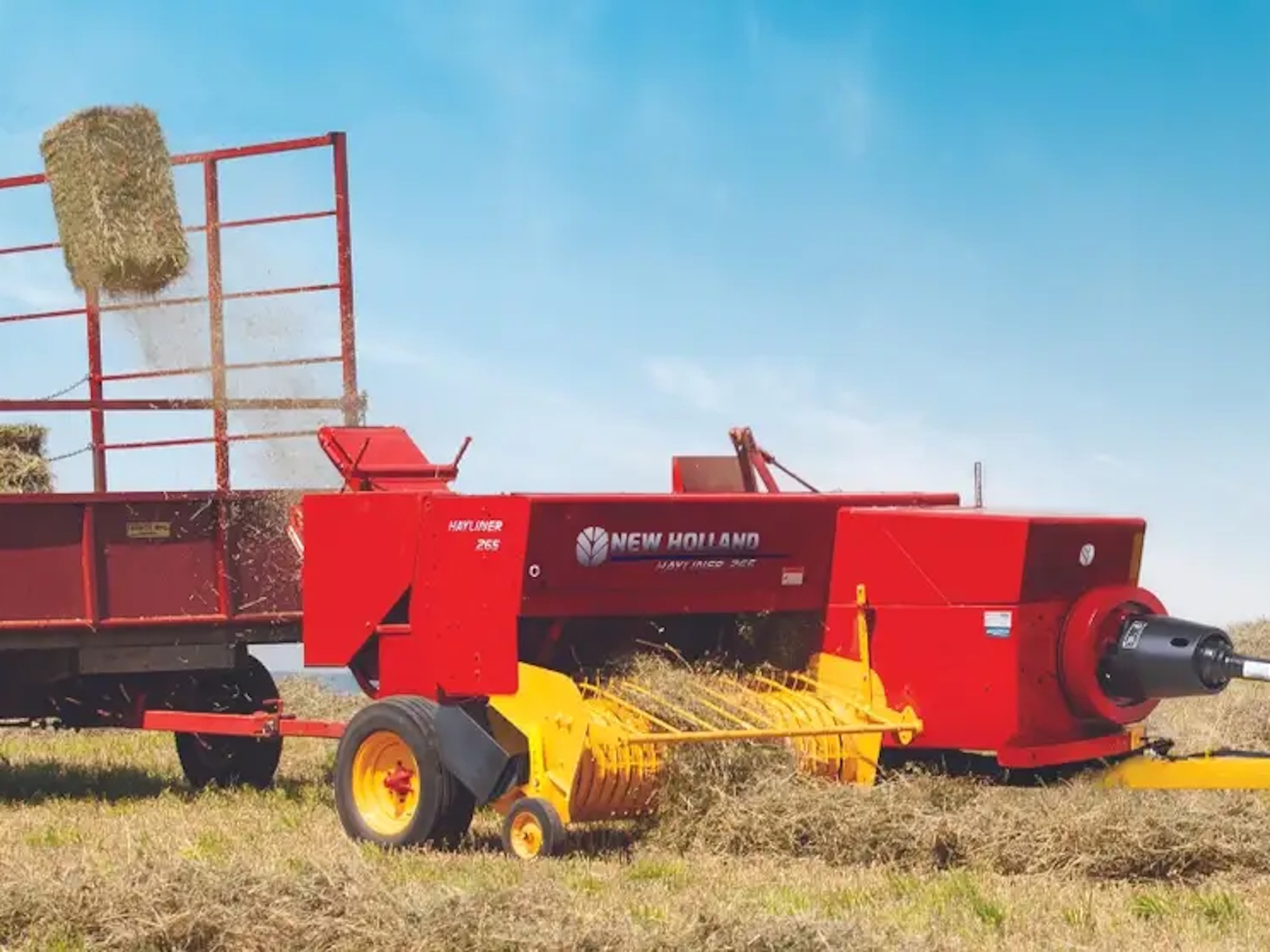

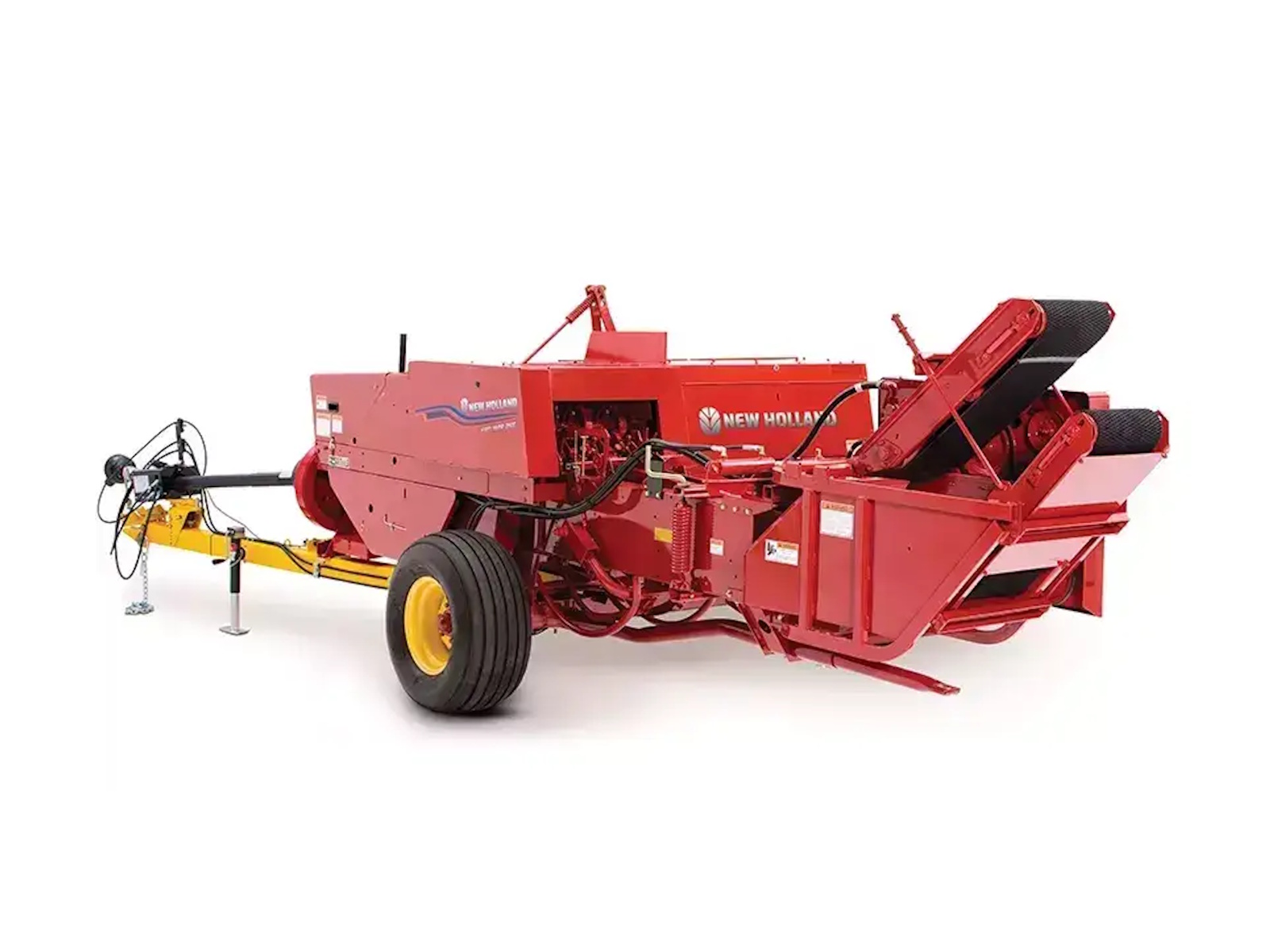

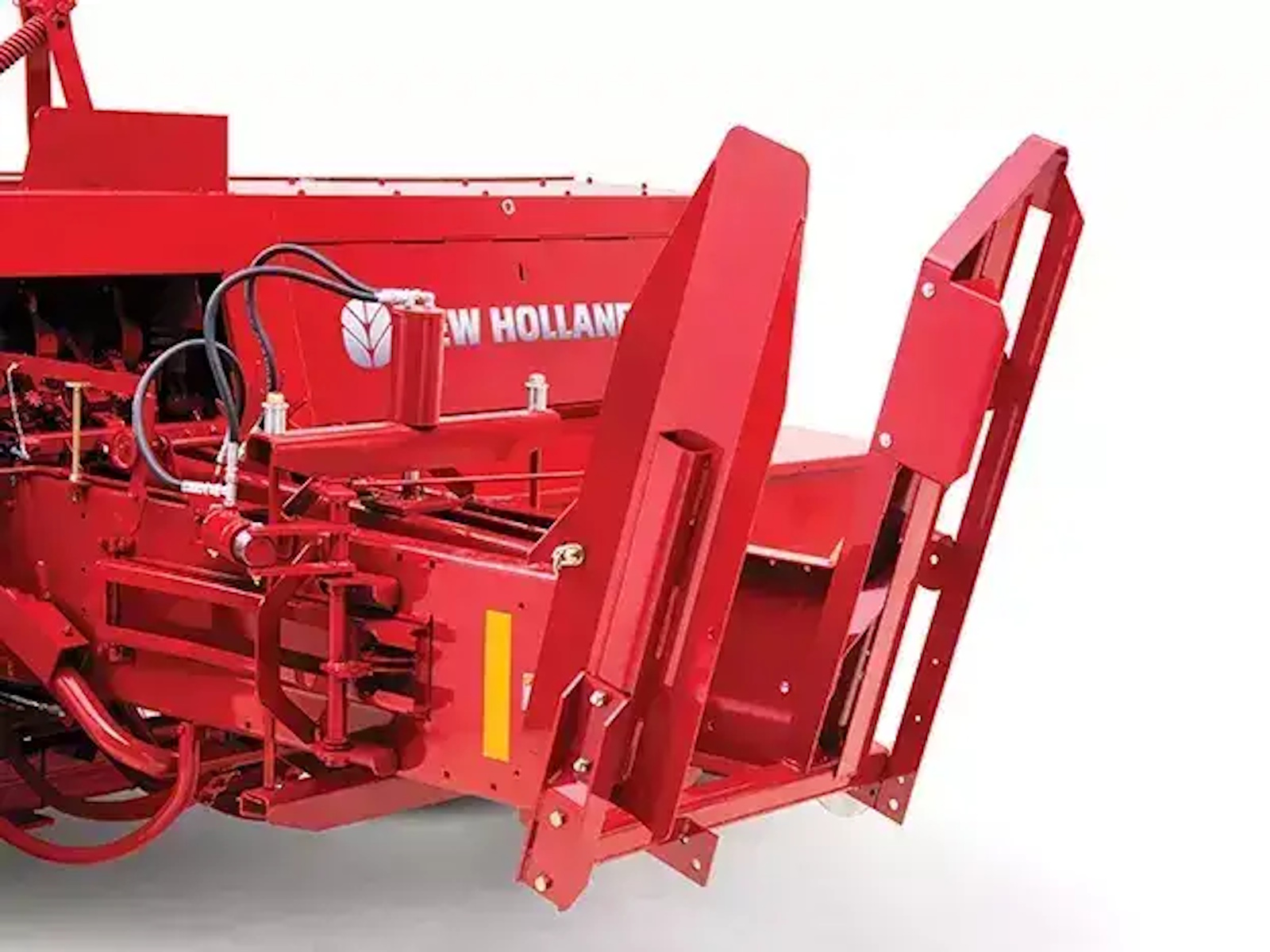

MODEL 72 BALE THROWER
Enhance your productivity by throwing bales right into your wagon as they’re made with the Model 72 Bale Thrower. It’s compatible on the Hayliner® 265 and Hayliner® 275. This belt-type thrower offers reliable performance with strong diamond-tread belts and adjustable spacers to control bale grip. These throwers can effortlessly fill wagons up to 18-feet long with bales up to 38-inches in length and 65-pounds in weight (higher bale weights are possible) without limiting capacity. This thrower’s simple design allows for easy adjustments, servicing and trouble-free operation, season after season.

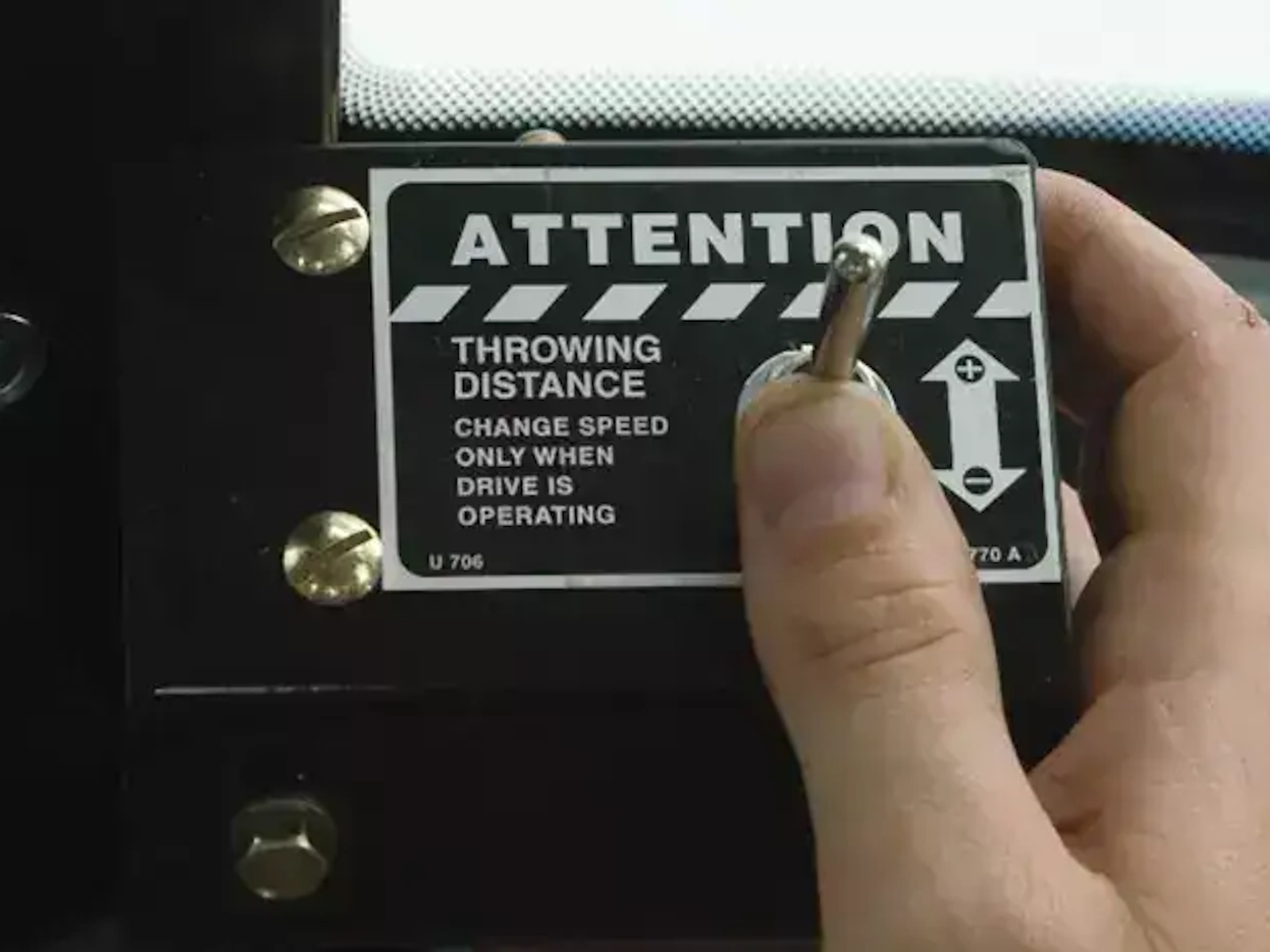

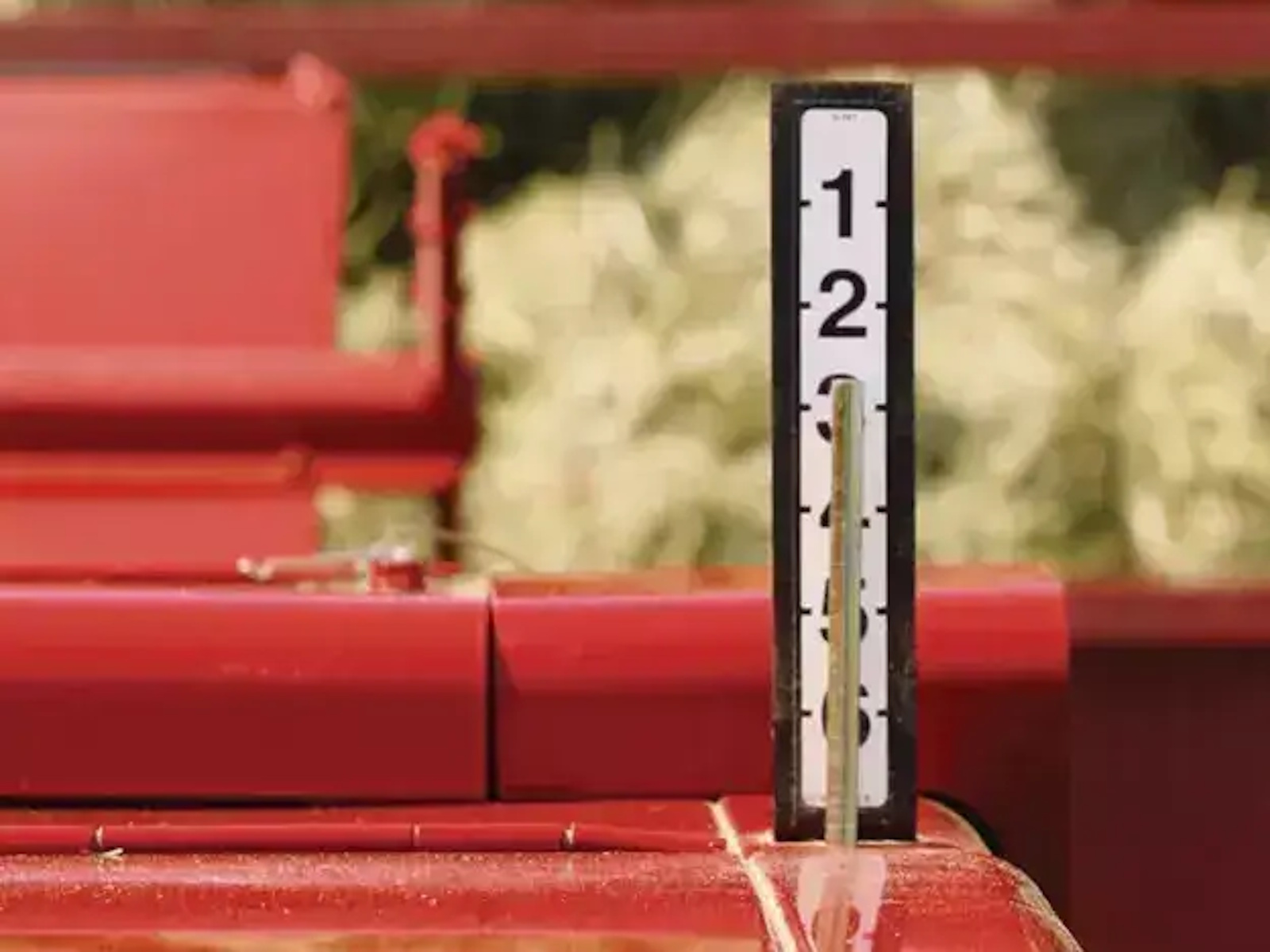

To adjust the distance bales are thrown, belt speed is conveniently controlled from the seat of your tractor with a toggle switch controller. A distance indicator is easily visible from your tractor seat on top of the baler to show the relative distance bales are thrown. “1” represents the slowest speed and shortest distance, while a “6” represents the fastest belt speed and farthest distance, throwing bales at nearly 28 mph (45 kph). A tractor-activated hydraulic cylinder provides up to 30 degrees of rotation for perfect placement in your wagon.

DESIGNED WITH YOU IN MIND
To ensure that you stay productive, the Hayliner® Series offers an array of standard and optional features designed with you in mind. From durable steel shielding that opens wide for simple service, to add-on features, like lighting kits and the CropSaver™ preservative applicator, you can rest assured that you’ll be ready to bale when the conditions are right.

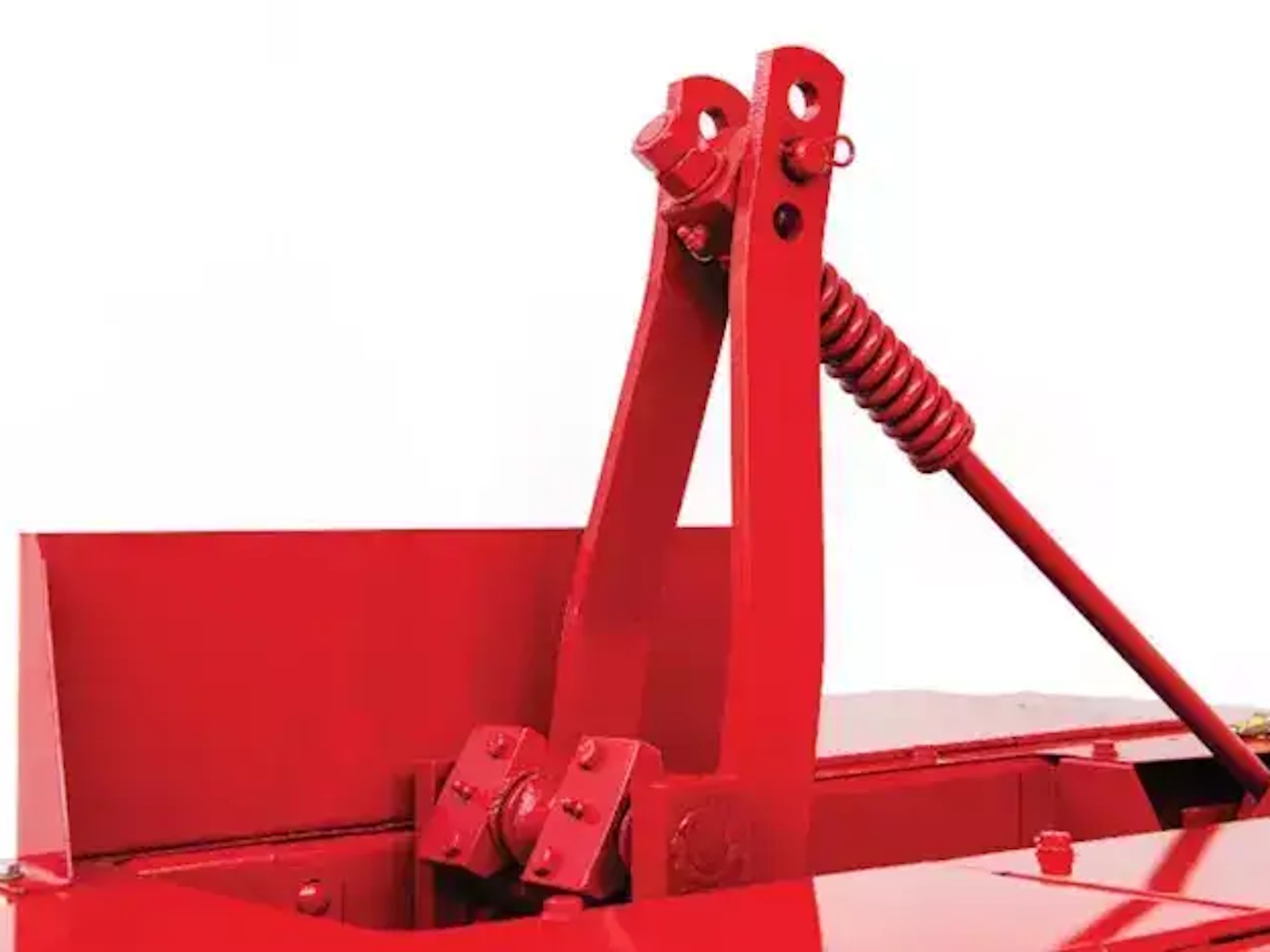

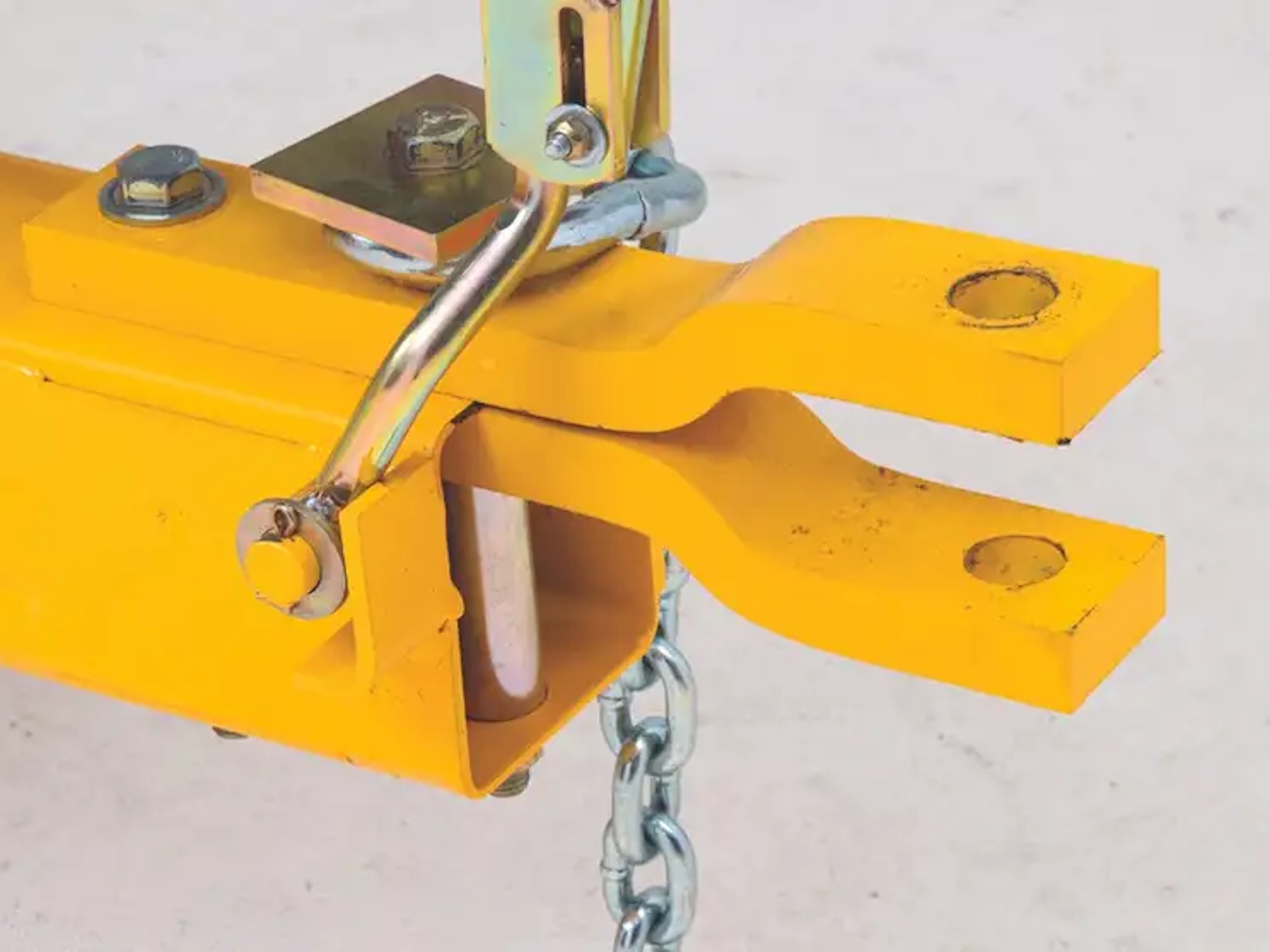

HEAVY-DUTY TONGUE
To accommodate large tractor drawbars without binding, all models feature a heavy-duty, easy-to-level tongue with a deep clevis (Hayliner® 265 shown). For added strength, the tongue is made of heavy-gauge steel with reinforced box construction, which pulls from the baler’s axle to minimize towing stress.

CONVENIENT PTO AND HOSE STORAGE
For convenience during storage, a PTO holder is incorporated on the hitch and hydraulic hoses can be stored in the PTO shaft shielding to keep them clean.

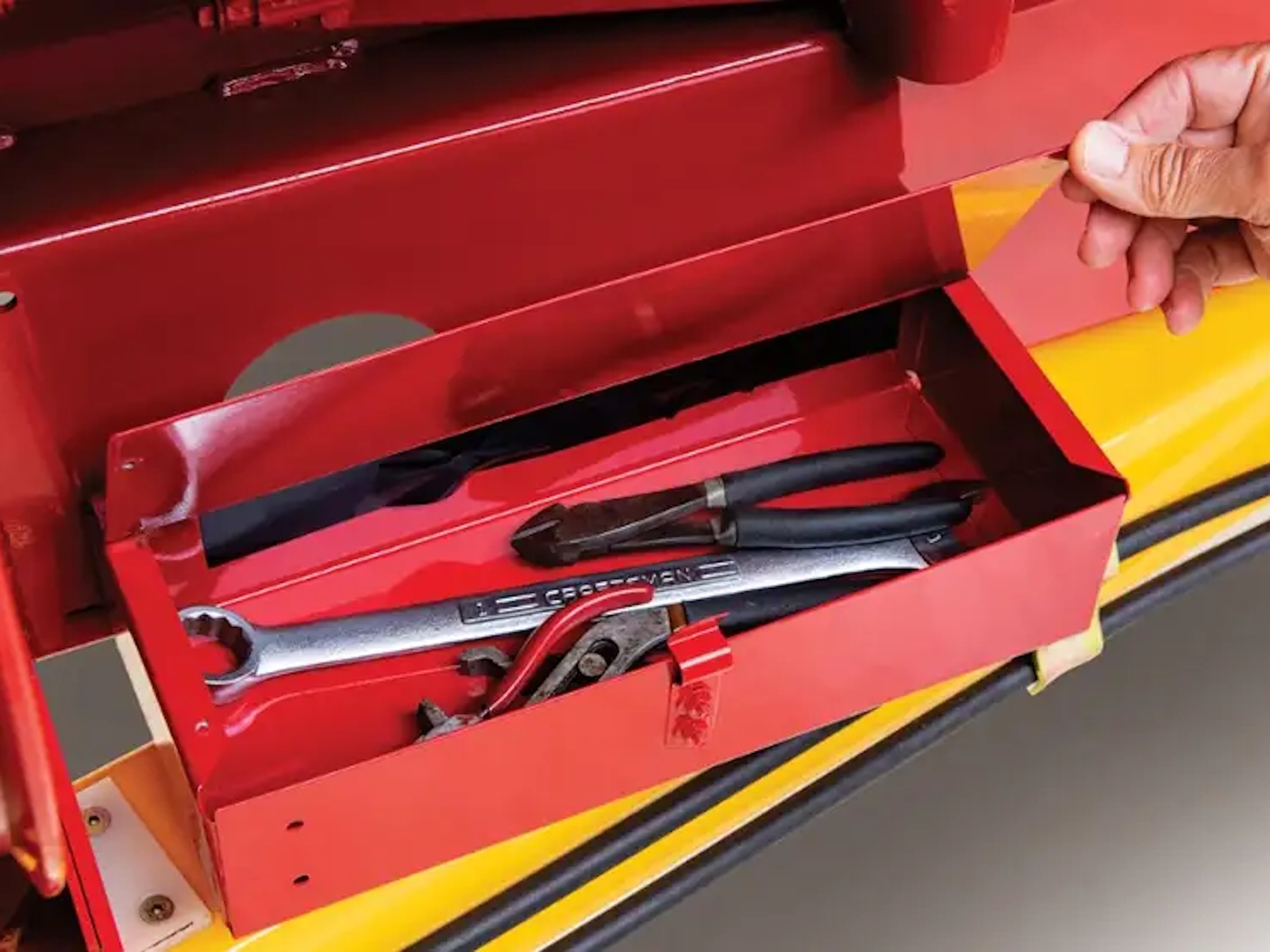

FACTORY-SUPPLIED TOOLBOX
A factory-supplied steel toolbox is included with all models.

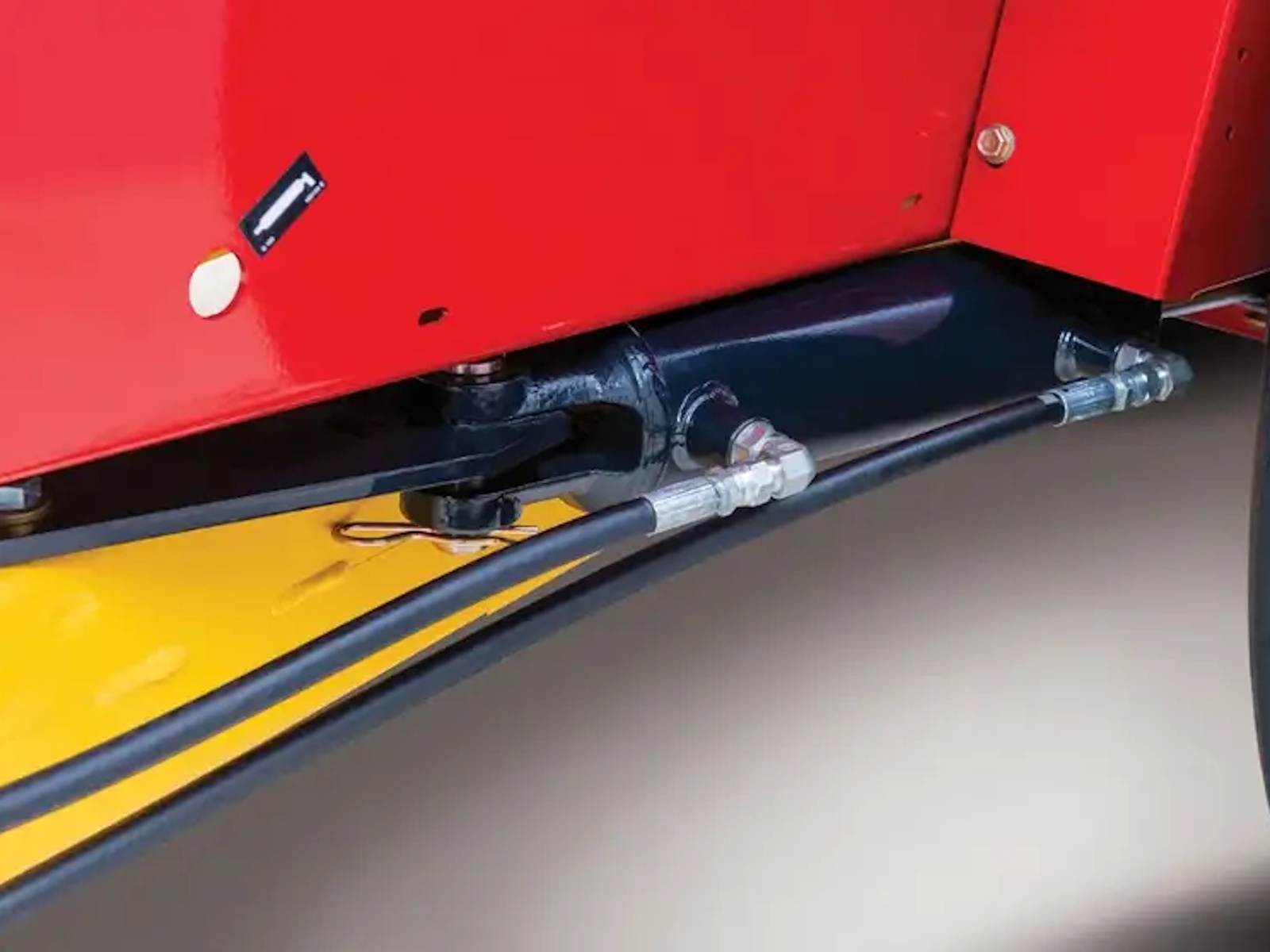

HYDRAULIC TONGUE SWING
While mechanical tongue swing is standard, you can also use hydraulics to swing the baler into transport or working position quickly and easily. Hydraulic tongue swing is standard on the Hayliner® 275 PLUS and available as a kit for the Hayliner® 265 and Hayliner® 275.

OPEN YOUR BALING WINDOW WITH CROPSAVER™
When you treat hay with New Holland CropSaver hay preservative, you can bale at moistures up to 30% without worrying about heating or mold damage. That means you can start baling earlier and stay in the field later to finish on your schedule, no matter what the weather forecast says. CropSaver preservative also helps maintain both the fresh smell and green color of hay, even after it has been stored.

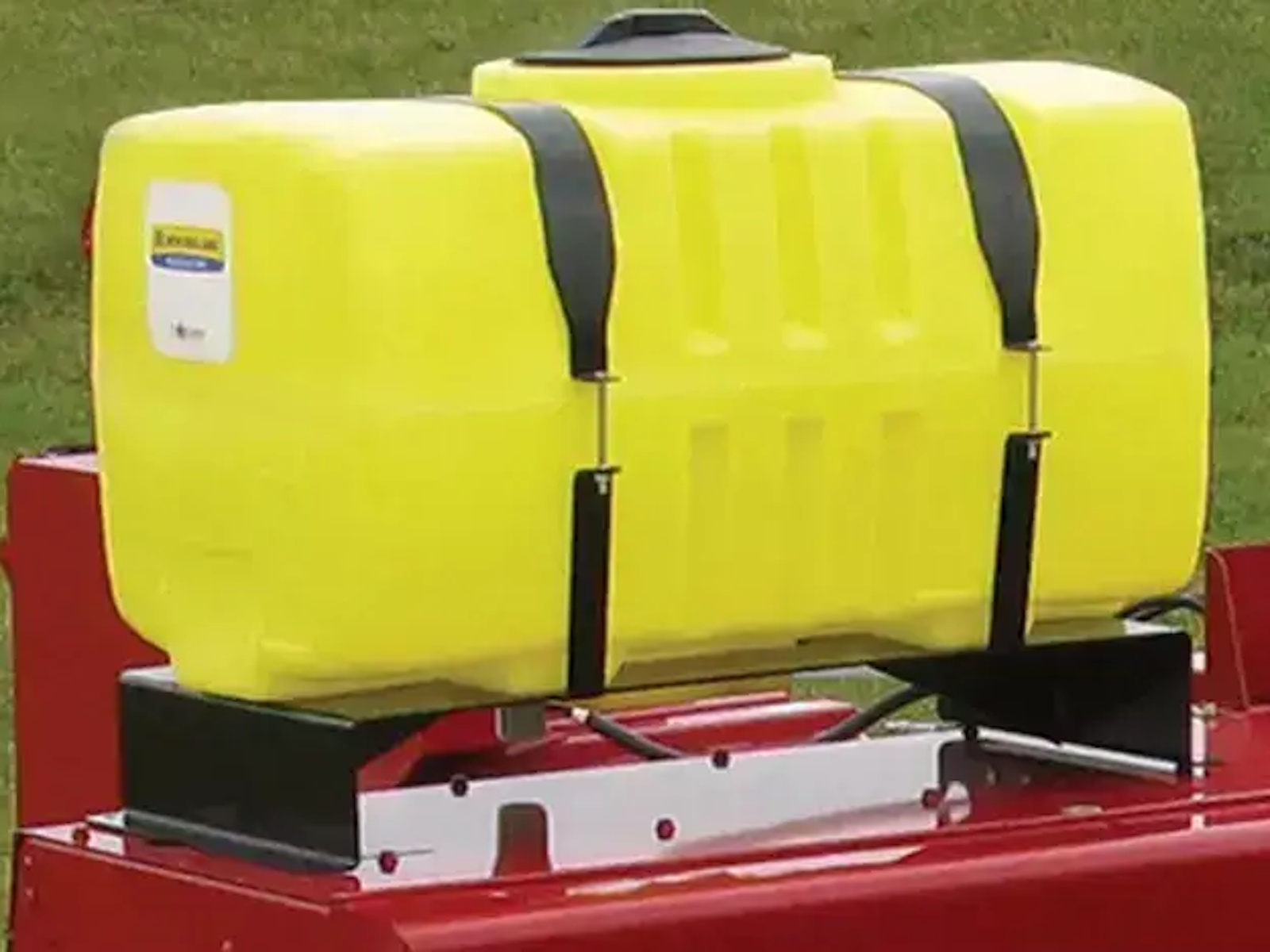

The automatic CropSaver applicators feature a 25- or 55-gallon tank and twin star wheels mounted on the underside of the baler chute. These measure the moisture in each bale and continuously adapt the application rate every three seconds to respond to moisture changes.

DAY AND NIGHT VISIBILITY
Whether you’re traveling down the road during the day, or baling in the field at night, visibility is key. When roading, choose the dealer-installed road lights with turn signals for safety. If you bale at night, choose the bright, dealer-installed halogen lights for impressive illumination. Two lights face the rear of the baler, while a third light illuminates the chamber area.
