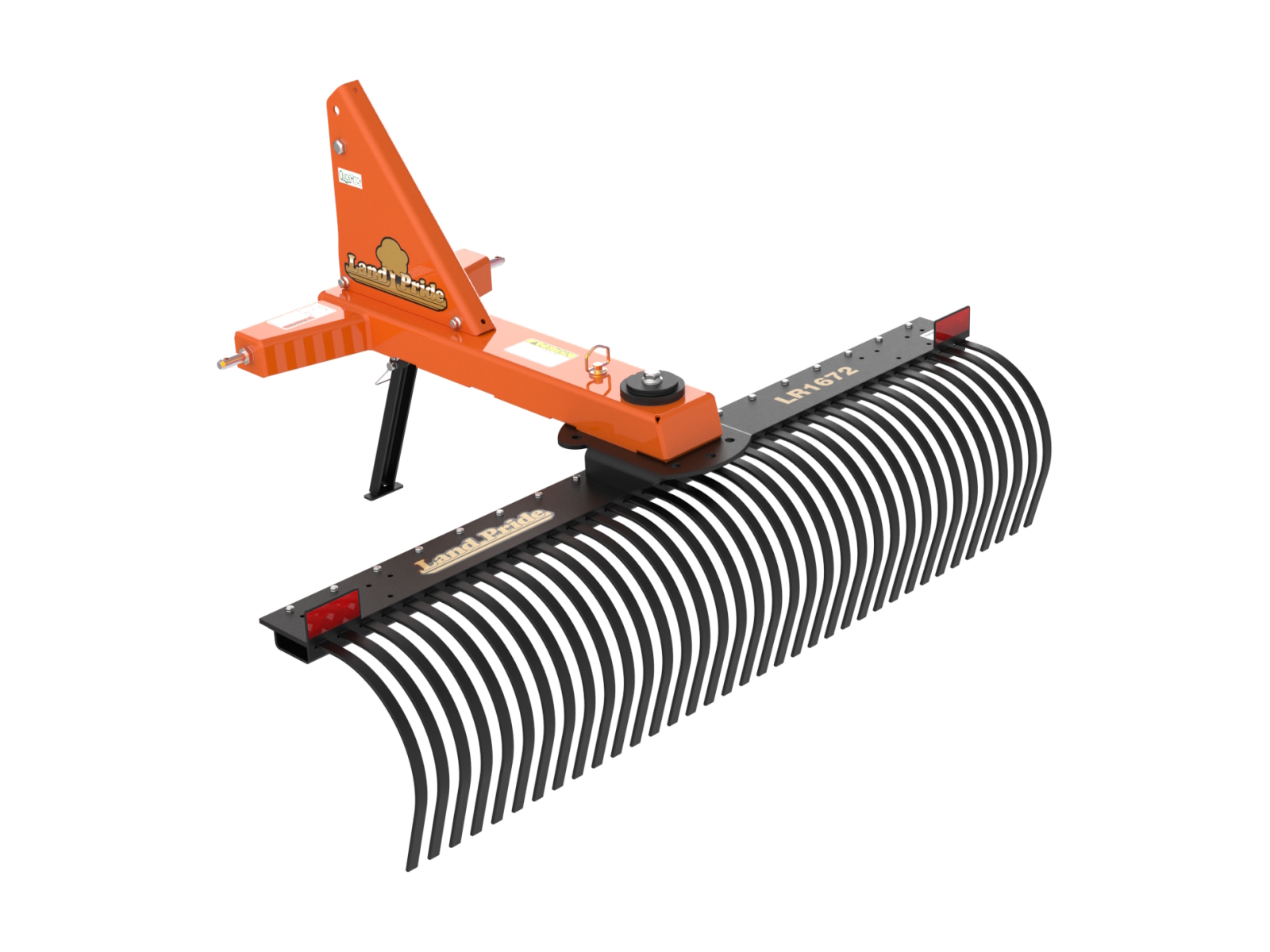

    2026 Land Pride LR1660

    The LR16 Series Landscape Rakes from Land Pride perform final soil surface preparation and reshaping soil and/or aggregate profile and offer angling capabilities to meet specific finishing needs. Optional gauge wheel packages are also available to enable a more consistent finish over uneven or undulating terrain. The LR16 offers a flip-down grader to expedite material distribution and contouring tasks. These Land Pride Landscape Rakes are perfectly suited for use by landscapers, contractors, and rental yards and have applications at housing and road construction projects, golf courses, terracing sites, run-off control projects, and reclamation and reforestation sites. *S/N 872034+ is compatible with QH05

    Features May Include:

    • Quick-Hitch Compatible
      • Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.
    • Teeth
      • High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.
    • Easy Tooth Replacement
      • Teeth alignment secured by channel frame design allows easy single tooth replacement.
    • Heavy Frame Plate
      • Heavy frame plate adds durability.
    • Optional Gauge Wheels
      • Optional gauge wheels provide ease of depth control.
    • Optional Hydraulic Angling Kit
      • Allows the operator to change rake angle from the tractor seat.
    • Rear Blade Attachment
      • The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility

    Info

    Industry

    Agriculture

    Make

    Land Pride

    Model

    LR1660

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Rake

    Subcategory

    General


    Specs

    Width

    Rake: 60 in (1.52 m kg)

    Weight

    241 lbs(109 kg)

    Notes

    Rake angle Manually (Standard): 7 Forward positions, maximum 45o Right or Left in 15o increments, Hydraulically (Accessory): Infinite number of forward positions, maximum 45o Right or Left | Teeth material: High Carbon Spring Steel | Teeth Spacing: 2 in (5.1 cm) Centers | Teeth size (thickness x width): 5/16 in x 1 in (8 mm x 2.5 cm) | Individual replaceable teeth: Standard | Park stand: Standard | Pivot tube diameter: 3 1/2 in (9 cm) | Number of teeth: 30 | Hitch category: Cat. l, Fits Land Pride’s Quick Hitch

    Power/Horsepower

    Horsepower rating: 20-40 (15-30 kW)

    Height

    Rake: 16 1/2 in (42 cm)
