2026 JLG 10054
Get in Touch
Description

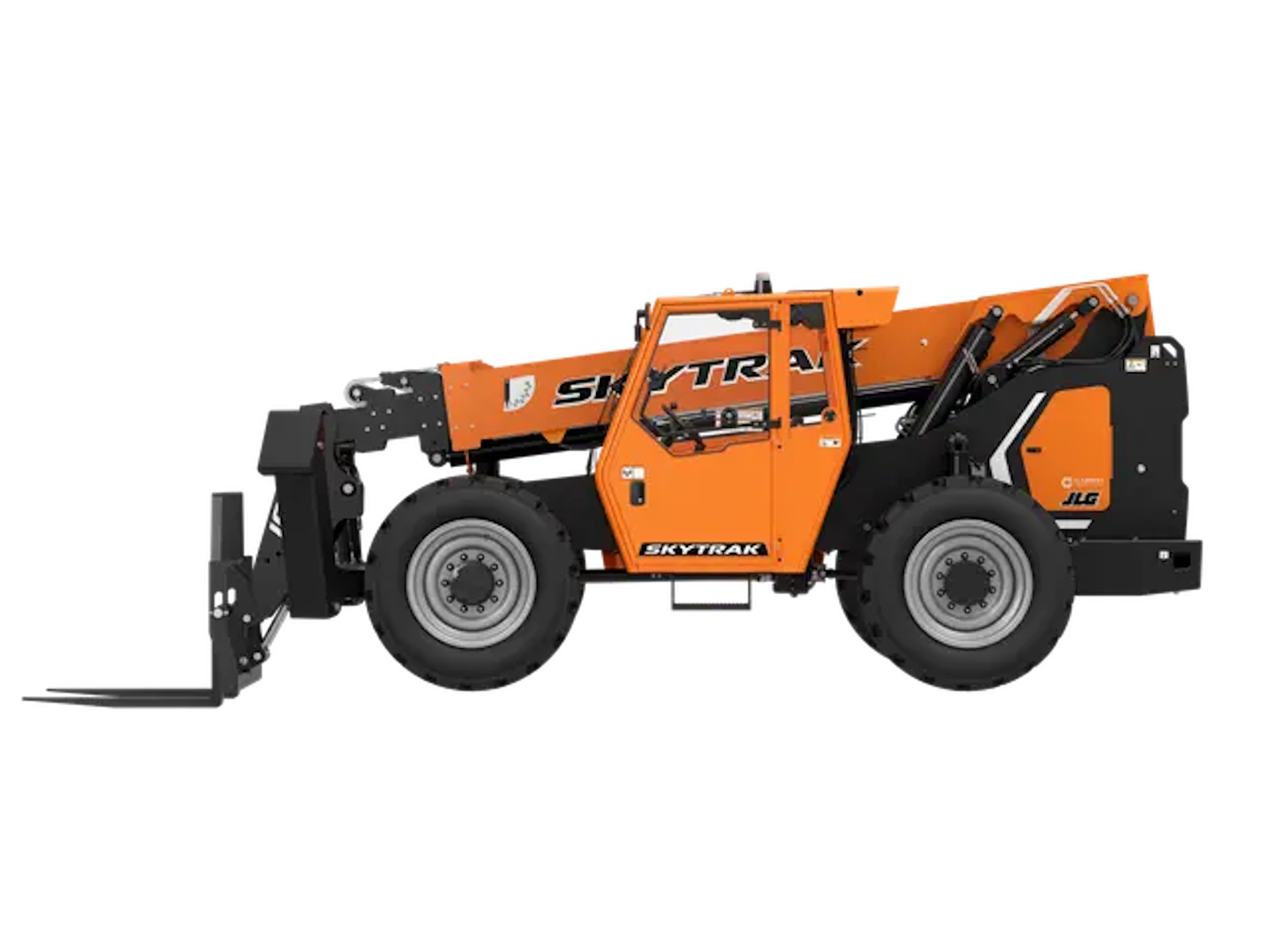

2026 JLG 10054
Engineered for peak performance, the SkyTrak 10054 features a multifunction, electric over hydraulic joystick that includes auxiliary hydraulic functions and attachment tilt, allowing operators to maximize productivity. The advanced control system allows for more options and improved diagnostics.
The cab includes an updated gauge display, integrated arm rest, and optional air conditioning. To further enhance efficiency, SmartShift technology comes standard. This feature reduces manual shifting and optimizes transmission performance.
The SkyTrak 10054 has an optional 74 hp engine that doesn’t require Diesel Exhaust Fluid (DEF), as well as a standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.
Info
Industry
Agriculture
Make
JLG
Model
10054
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Fuel Type
Gas
Load Capacity
Rated: 10,000 lb (4,536 kg)
Height
Maximum Lift: 53 ft 2 in (16.2 m) | Load at Max: 5,000 lb (2,268 kg) | Machine: 8 ft 4 in (2.54 m)
Turning Radius
Outside: 13 ft 10 in (4.2 m)
Weight
Operating: 27,400 lb (12,428 kg)
Engine
Cummins F3.8
Cylinders
4
Displacement
231.9 cu in (3.8 L)
Power/Horsepower
110 HP (82 kW @ 2,500 rpm)
Torque
Maximum @ 1500 rpm: 348 lb ft (472 Nm)
Fuel Capacity
Tank: 35 gal (132.5 L)
Transmission
Powershift. | 4-speed forward and 3-speed reverse.
Brakes
Hydraulically actuated inboard wet disc brakes. | Emergency brake.
Tires
Standard: 400/75-28 Pneumatic | Optional: Foam-Filled, Non-Marking (Pneumatic or Foam-Filled) 17.5 x 25 Pneumatic or Foam-Filled, 360/85-28 Solid
Steering
Power steering. | Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front.
Length
Machine: 21 ft (6.40 m)
Width
Machine: 8 ft 6 in (2.59 m) | Machine Outriggers Down: 13 ft 1 in (3.98 m)
Wheelbase
10 ft (3.04 m)
Ground Clearance
18 in (457 mm)
